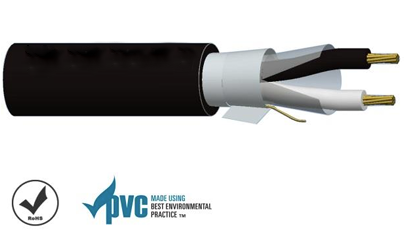

#html-body [data-pb-style=IB5TYK6]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}1Pair 7/0.30 Shielded Instrumentation Data Cable | 500m BlackEnhance your industrial automation and control systems with the robust Multi-Pair 7/0.30 1 Pair Screened PVC Cable. This high-quality cable, featuring 7/0.30mm bare copper conductors and PVC insulation, is designed for optimal performance in instrumentation, control, alarm, and security applications. The aluminium laminate screen provides moderate screening against electrical interference, making it ideal for environments where reliable signal transmission is critical.   This cable is perfect for connecting devices to Programmable Logic Controllers (PLCs), air-conditioning controllers, thermostats, and refrigeration units. It is also suitable for factory automation systems, interconnecting proximity sensors, reed switches, IR sensors, overcurrent detectors, and control signals for DC or AC motor drives. Its PVC jacket ensures durability and flame retardancy, making it suitable for indoor or factory environments.   For those requiring higher screening performance, an individual and collective screened version is available. Additionally, for areas at risk of physical damage, steel wire armoured versions can be considered. The cable is also available in a red jacket for fire alarm system applications.   Choose the Multi-Pair 7/0.30 1 Pair Screened PVC Cable for a reliable and versatile solution to your industrial and control wiring needs. Experience superior performance and compliance with standards such as AS/NZS 1125 and AS/NZS 3808.FEATURES 7/0.30mm bare copper conductor PVC insulated and jacketed Aluminium laminate screened for electrical interference Ideal for industrial, control, alarm, and security applications Suitable for indoor and factory environments Available in higher screening and steel wire armoured versions Red jacket option for fire alarm systems Complies with AS/NZS 1125, AS/NZS 3808, IEC60332-1 standards RoHS compliant SPECIFICATIONS Pack Size: 500m Applicable Standards: AS/NZS 1125, AS/NZS 3808, IEC60332-1 Suitable Applications: Voice and data services, interconnection between electrical equipment and instruments ROHS Compliant: Yes Number of Pairs: 1 Conductor Characteristics AWG: 20 Stranding: 7/0.30mm Area: 0.5mm Diameter: 0.91mm Material: Bare Copper (BC) Insulation Material: PVC Nominal Thickness: 0.32mm Nominal OD: 1.65mm Drain Wire AWG: 22 Stranding: 7 Area: 0.343mm Diameter: 0.25mm Material: Tinned Copper (TC) Screen Material: Aluminium Polyester Tape Coverage: 100% Outer Sheath Material: PVC Colour: Black Nominal Thickness: 0.65mm Nominal OD: 4.7mm Physical Characteristics Insulation Elongation at BBA: >100% Outer Sheath Elongation at BBA: >100% Tensile Strength Before Aging: >12MPa Electrical Properties Voltage Rating: 110a.c/150d.c Max. Conductor DC Resistance @ 20 C: 38.4Ω/km Max. Mutual Capacitance @ 1KHz: 85pF/m Nom. Characteristic Impedance @ 1MHz: 380ohm Voltage Test: Conductor to core: 2.0kV ac/1min Mechanical Properties Operating Temp Range: -15 to 90 C Max. Recommended Pulling Tension: 60N Min Bend Radius (Install): 47mm Approximate Mass: 3.1kg/100m Supply Information Pack Type: Wooden Reel Dimensions: W33 x H21.8cm WARRANTY1-year limited warranty
