SMV1000CAI
Output
Max Configurable Power (Watts)	700Watts / 1.0kVA
Output Frequency (not synced)	50/60 Hz +/-1 Hz
Load Crest Factor	3 : 1
Topology	Line Interactive
Waveform type	Sine wave
Transfer Time	2ms typical
Input
Input frequency	45 - 65 Hz (auto sensing)
Input voltage range for main operations	160 - 295V
Number of Power Cords	1
Other Input Voltages	220, 240
Batteries & Runtime
Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time	4hour(s)
Expected Battery Life (years)	3 - 5
Runtime Graph	View Runtime Graph
Runtime Chart	View Runtime Chart
Efficiency	View Efficiency Graph
Communication & Management
Interface Port(s)	SmartSlot, USB
Audible Alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Physical
Maximum Height	220mm, 22cm
Maximum Width	160mm, 16cm
Maximum Depth	410mm, 41cm
Net Weight	13.6kg
Shipping weight	16.6kg
Shipping Height	339mm, 33.9cm
Shipping Width	272mm, 27.2cm
Shipping Depth	508mm, 50.8cm
Environmental
Operating Temperature	0 - 40 °C
Operating Relative Humidity	0 - 95 (non-condensing) %
Operating Elevation	0-3000meters
Storage Temperature	-10 - 40 °C
Storage Relative Humidity	0 - 95 %
Storage Elevation	0-3000meters
Audible noise at 1 meter from surface of the unit	45.0dBA
Conformance
Approvals	CE
Standard warranty	2 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	Contains SVHCs

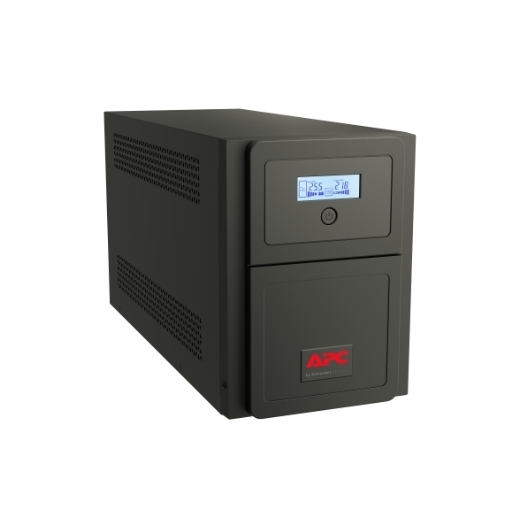

APC Easy UPS SMV 1000VA 230V | SMV1000CAI APC Easy UPS SMV 1000VA 230V Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers Includes: Documentation CD, USB cable, User Manual SMV1000CAIFeatures Output power capacity: 700Watts / 1000VA Output Connections: (6) IEC 320 C13 (Battery Backup) Nominal Output Voltage: 230V Nominal Input Voltage: 230V Input Connections: IEC-320 C14 Automatic Voltage Regulation (AVR): Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Cold-start capable: Provides temporary battery power when the utility power is out. LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Easy UPS Features & Benefits Audible alarms: Provides notification of changing utility power and UPS power conditions LED Indicators: Provide easy-to-read status of the unit and utility power conditions. Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home d ƒ ©cor. Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles. Cold-start capable: Provides temporary battery power when the utility power is out. Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations. Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging. Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes. Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Warranty 2-year limited warranty. Why 4Cabling? Australia ‚ s leading importer & wholesaler of 19 ‚ server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
