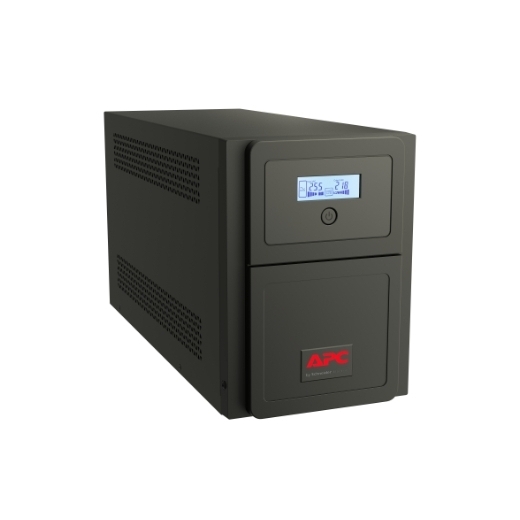

APC Easy UPS SMV 3000VA 230V | SMV3000CAI (012.007.0014)

SKU
306219
MPN
012.007.0014
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$2,122.00
Buy Now And Earn 2122 Reward Points!

DETAILS

APC EASY UPS SMV 3000VA 230V | SMV3000CAI

APC Easy UPS SMV 3000VA 230V

Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers

Includes: Documentation CD, USB cable, User Manual

SMV3000CAIFEATURES

  • Output power capacity: 2.1kWatts / 3.0kVA
  • Output Connections: (6) IEC 320 C13 (Battery Backup)
  • Nominal Output Voltage: 230V
  • Nominal Input Voltage: 230V
  • Input Connections: IEC-320 C14
  • Automatic Voltage Regulation (AVR): Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.



EASY UPS FEATURES & BENEFITS

  • Audible alarms: Provides notification of changing utility power and UPS power conditions
  • LED Indicators: Provide easy-to-read status of the unit and utility power conditions.
  • Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
  • Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.
  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
  • Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
  • Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes.
  • Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

WARRANTY

2-year limited warranty.

Output
Max Configurable Power (Watts) 2.1kWatts / 3.0kVA
Output Frequency (not synced) 50/60 Hz +/-1 Hz
Load Crest Factor 3 : 1
Topology Line Interactive
Waveform type Sine wave
Transfer Time 2ms typical
Input
Input frequency 45 - 65 Hz (auto sensing)
Input voltage range for main operations 157 - 303V
Number of Power Cords 1
Other Input Voltages 220, 240
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time 4hour(s)
Expected Battery Life (years) 3 - 5
Battery Charge Power (watts) 99Watts
Battery Volt-Amp-Hour Capacity 392
Runtime Graph View Runtime Graph
Runtime Chart View Runtime Chart
Efficiency View Efficiency Graph
Communication & Management
Interface Port(s) USB
Audible Alarm Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Physical
Maximum Height 240mm, 24cm
Maximum Width 180mm, 18cm
Maximum Depth 45mm, 45.5cm
Net Weight 25.2kg
Shipping weight 28.9kg
Shipping Height 410.5mm, 41.05cm
Shipping Width 326mm, 32.6cm
Shipping Depth 601mm, 60.1cm
Environmental
Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 (non-condensing) %
Operating Elevation 0-3000meters
Storage Temperature -10 - 40 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-3000meters
Audible noise at 1 meter from surface of the unit 45.0dBA
Conformance
Approvals CE
Standard warranty 2 years repair or replace
