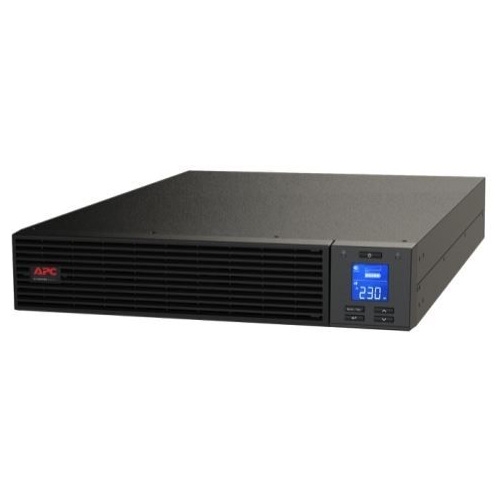

APC Easy UPS On-Line SRV RM 3000 VA 230V with Rail Kit | SRV3KRIRK (012.007.0017)
SKU
306220
MPN
012.007.0017
Warranty
Standard Manufacturer's Warranty
$2,281.00
Buy Now And Earn 2281 Reward Points!
DETAILS
APC EASY UPS ON-LINE SRV RM 3000 VA 230V WITH RAIL KIT | SRV3KRIRK
APC Easy UPS On-Line SRV RM 3000VA 230V with Rail Kit
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting support rails, USB cable, User Manual
SRV3KRIRK FEATURES
- Output power capacity: 2.4kWatts / 3.0kVA
- Rack Height: 2U
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: IEC-320 C14
- Cord Length: 1.48meters
- Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault
- Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
- Automatic updates and backups: Updates and backups are automatically applied to always provide the most current solution.
- ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
- Intelligent battery management: Maximizes battery performance, life and reliability through intelligent, precision charging.
- LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms
- Serial connection: Use your PC to access additional power protection and manage features for your UPS via a serial port.
- USB Connection: Use your PC to access additional power protection and manage features for your UPS via a USB port.
EASY UPS ONLINE FEATURES & BENEFITS
- Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
- High efficiency: High-efficiency rates that remain stable even at lower operating power levels
- ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
- Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Wide input voltage range: Designed for harsh electrical environments to save battery life.
- Management Software: Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures easy and intuitive monitoring.
- USB connection: Use your PC to access additional power protection and management features for your UPS via a USB Port.
- Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Audible alarms: Provides notification of changing utility power and UPS power conditions
- Disconnected battery notification: Warns when a battery is not available to provide backup power.
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.
- LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
- SmartSlot: Customize UPS capabilities with management cards
- Serial connectivity: Provides management of the UPS via a serial port.
- LED Indicators: Provide easy-to-read status of the unit and utility power conditions.
- Network manageable: Provides remote power management of the UPS over the network.
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
| Output | |
| Max Configurable Power (Watts) | 2.4kWatts / 3.0kVA |
| Efficiency at Full Load | 88.0% |
| Output Frequency (sync to mains) | 50/60 Hz +/-1 Hz |
| Other output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double Conversion Online |
| Waveform type | Sine wave |
| Bypass | Internal Bypass (automatic and Manual) |
| Input | |
| Input frequency | 40 - 70Hz |
| Input voltage range for main operations | 160 - 280V |
| Input voltage adjustable range for mains operation | 100 - 280V (half load) |
| Number of Power Cords | 1 |
| Efficiency at Full Load | 88.0% |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 4hour(s) |
| Expected Battery Life (years) | 3 - 5 |
| Battery Charge Power (watts) | 118Watts |
| Battery Volt-Amp-Hour Capacity | 473 |
| Runtime Graph | View Runtime Graph |
| Runtime Chart | View Runtime Chart |
| Efficiency | View Efficiency Graph |
| Communication & Management | |
| Interface Ports | DB9 RS-232, Smart-Slot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Emergency Power Off (EPO) | -- |
| Available SmartSlot™ interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 600 Joules |
| Physical | |
| Maximum Height | 86mm, 8.6cm |
| Maximum Width | 437mm, 43.7cm |
| Maximum Depth | 632mm, 63.2cm |
| Net Weight | 27.6kg |
| Shipping weight | 29.0kg |
| Shipping Height | 229mm, 22.9cm |
| Shipping Width | 569mm, 56.9cm |
| Shipping Depth | 795mm, 79.5cm |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -20 - 50 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0-15000meters |
| Audible noise at 1 meter from surface of the unit | 50.0dBA |
| Protection Class | IP20 |
| Conformance | |
| Approvals | CE |
| Standard warranty | 2 years repair or replace |
