AXIS PoE Injector - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W 01944-001
SKU
416996
Brand
MPN
01944-001
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$427.00
Buy Now And Earn 427 Reward Points!

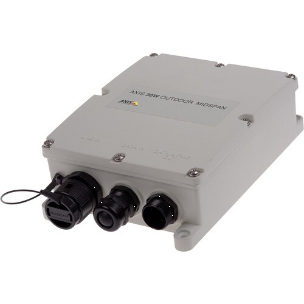

AXIS PoE Injector - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.- Outdoor-ready, IP66/67- and NEMA 4X-rated
- IEEE 802.3af and 802.3at
- 100 to 240 V AC
- Railway compliant EN 50121-4 and IEC 62236-4
Miscellaneous
Compatibility |
|
Technical Information
Protection Type | Surge Protection |
Interfaces/Ports
Input Ports | 1 x 10/100/1000Base-T |
Output Ports | 1 x PoE |
Physical Characteristics
Weight (Approximate) | 1.40 kg |
Form Factor | Wall/Pole Mountable |
Height | 60 mm |
Width | 170 mm |
Depth | 140 mm |
General Information
Product Type | PoE Injector |
Manufacturer Part Number | 01944001 |
Manufacturer Website Address | http://www.axis.com/au/en/ |
Manufacturer | Axis Communications |
Product Name | 30 W Outdoor Midspan |
Brand Name | AXIS |
Power Description
Input Voltage | 230 V AC |
120 V AC | |
Maximum Frequency | 60 Hz |
Minimum Frequency | 50 Hz |
Maximum Output Power | 30 W |
Maximum Output Voltage | 54 V DC |
