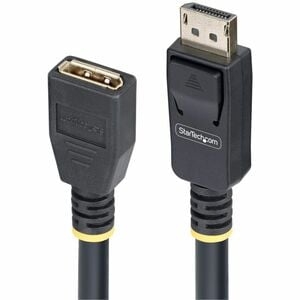

StarTech.com 10ft (3m) DisplayPort 1.4 Extension Cable, DP 1.4 Port Saver Cable, 8K 60Hz, DisplayPort Extension Adapter Cord, Male to Female - Extend a DisplayPort cable connection w/8K 60Hz video; Bi-directional DP 1.4 Port Saver reduces wear on DP port
This high quality DisplayPort 1.4 Extension Cable provides extra reach for greater setup versatility, and reduces wear and tear of the DP port on your monitor or other devices. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DisplayPort cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.4 performance.
This male-to-female DisplayPort extension cable supports all DisplayPort 1.4 features:
• Resolutions up to 8K 60Hz or 4K 144Hz
• High speeds with a bandwidth of up to 32.4Gbps
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• High Dynamic Range (HDR) for higher contrast ratio and vivid colors
• Crystal-clear sound with up to 32 digital audio channels
This DisplayPort extension cable is backwards compatible with earlier versions of DisplayPort, ensuring seamless integration with existing DisplayPort devices.
- DP 1.4 EXTENSION: Extend a 8K 60Hz / 4K 144Hz DisplayPort connection for greater versatility using this DP 1.4 Extension Cable; Choose the right cable at-a-glance with performance markings on connectors for quick identification
- FULL-FEATURED DISPLAYPORT 1.4: Supports 32.4Gbps bandwidth for superior UHD performance; Up to 4K 144Hz for ultra-smooth visuals; Connects to UHD monitors, high performance GPUs, and dedicated video/media devices; Backward compatible with DP 1.2/1.1
- QUALITY CONSTRUCTION: Durable Gold-plated connectors provide a precise fit to minimize wear and signal loss; Flexible TPE jacket with strain reliefs withstands frequent or static bends, for easy routing around corners and desk edges
- APPLICATIONS: Swiftly extend the reach between DisplayPort devices; Suitable for video walls/mounted TVs, multi-monitor workstations, and DP switches/KVMs; Use this cable as a Port Saver to reduce strain on device ports; Ideal for hard-to-access DP ports
- SPECS: Black; 10-foot (3-meter); Bi-directional; Passive; DisplayPort 1.4 supports 8K 60Hz/4K 144Hz w/HBR2, MST, and 32-ch audio; 32.4Gbps; 30AWG; 8.4mm (0.33in) O.D.; TPE Jacket is halogen-free and RoHS compliant
General Information | |
Product Type | A/V Cable |
Manufacturer Part Number | 10F-DP14-EXTEND-CBL |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 |
Manufacturer | StarTech.com |
Product Name | DisplayPort Extension Audio/Video Cable |
Brand Name | StarTech.com |
Physical Characteristics | |
Material Details | Copper Cable |
Weight (Approximate) | 241 g |
Height | 12.7 mm |
Width | 22.9 mm |
Jacket Material | Thermoplastic Elastomer (TPE) |
Shielding Material | Aluminum Mylar |
Braided Foil | |
Product Color | Black |
Color Family | Black |
Product Material | Santoprene |
Copper | |
Technical Information | |
Cable Length | 3 m |
Data Transfer Rate | 32.4 Gbit/s |
Device Supported | Digital Signage |
Monitor | |
Projector | |
Workstation | |
Audio/Video Device | |
Jacket Type | VW-1 |
Shielding | Yes |
Features | Tear Resistant |
Wear Resistant | |
Passive | |
Multi-Stream Transport (MST) Support | |
High Bit Rate 2 (HBR2) | |
Halogen-free | |
Cable Characteristic | Extension Cable |
Cable Type | DisplayPort |
Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Female |
Connector Plating | Gold |
American Wire Gauge | 30 AWG |
Supported Resolution | 7680 x 4320 |
Connector on First End Details | 1 x DisplayPort 1.4 Digital Audio/Video - Male |
Connector on Second End Details | 1 x DisplayPort 1.4 Digital Audio/Video - feMale |
Connector Gender on First End | Male |
Connector Gender on Second End | Female |
