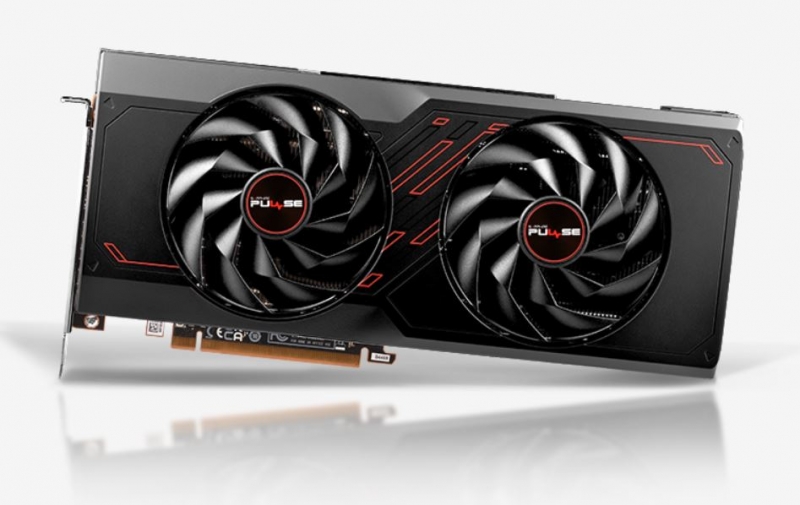

SAPPHIRE PULSE AMD RADEON™ RX 7800 XT GAMING 16GB GDDR6 DUAL HDMI / DUAL DP (11330-02-20G) 11330-02-20G
DESCRIPTION
SAPPHIRE PULSE AMD RADEON™ RX 7800 XT GAMING 16GB GDDR6 DUAL HDMI / DUAL DP
GPU
AMD Radeon™ RX 7800 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2430 MHz
Game Clock: Up to 2124 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
3840
Compute Units
60 CU (with RT+AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
60
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
19.5 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Output
2x HDMI
2x DisplayPort
