4 Cabling 1m Lc-sc Om4 Multimode Fibre Optic Cable: Blue Fl.om4lcsc1mb

SKU
271181
Brand
4 Cabling
Manufacturer Link
MPN
FL.OM4LCSC1MB
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$17.00
Buy Now And Earn 17 Reward Points!
Add to Compare

DETAILS

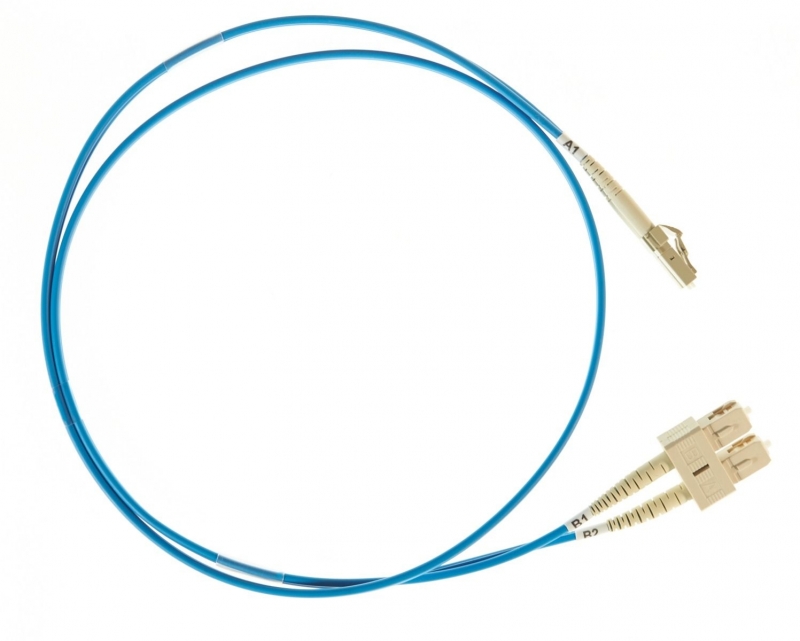

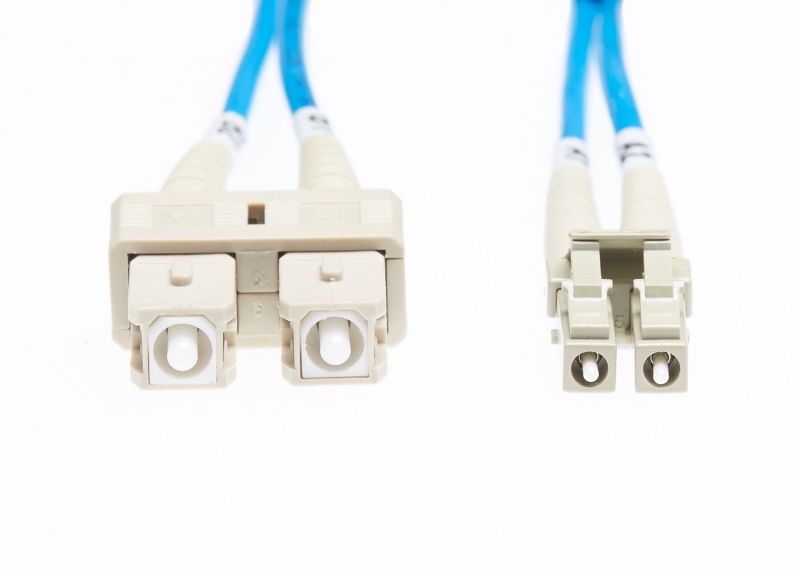

1M LC-SC OM4 MULTIMODE FIBRE OPTIC DUPLEX PATCH LEADS BLUE

Optical fibre cables are the thin, flexible fibres of glass that carry telephone conversations and emails all over the world in a matter of seconds with much less interference than copper cables. Fibre-Optic patch cables need less amplification to boost signals so they travel better over longer distances.

4Cabling's OM4 Laser Optimised Multimode Fibre Optic Patch Leads provide the connection for high speed and legacy networks like Gigabit Ethernet, Fast Ethernet and Ethernet and are immune to EMI/RFI. They are mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.

4Cabling Multimode Fibre Optics leads is the cost-effective way of your cabling solution.



2mm OVERSLEEVING. WARRANTY 3 YEARS



Applications include:

  • Backbone application in building
  • Termination enclosure for equipment patching
  • Equipment to equipment patching
  • Cross-connect patching



FEATURES:

  • Conforms to ISO/ IEC 11801
  • Individually labelled for lead tracing
  • Low smoke zero halogen (LSZH) cable
  • Manufactured with stringent quality control
  • All leads are supplied with a factory test report
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAC & 492AAAD
  • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ patch leads
  • All ends are polished and individually inspected for correct polishing
  • Supports high-speed multi-channel data, voice & video applications



FIBRE SPECIFICATIONS

  • OM4 Multimode
  • LC-SC Fibre Termination
  • Length: 1m
  • Colour: Blue
  • Oversleeving: 2mm



Why 4Cabling?

  • Expert advice
  • Australian owned & operated
  • Secure online shopping 24/7
  • Lightning fast delivery nationwide
  • Warranty & peace of mind return policy
  • Over 3000 quality products in stock ready to go
  • All products are approved as per local Australian standards
  • ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
  • A loyal customer base of 100k+ who trust us for their data & electrical needs
  • Australia’s leading importer & wholesaler of 19” server racks, copper, fibre & structured networking products

SPECIFICATIONS

Crush (N) 1000
Simplex/Duplex Duplex
Strength Member Aramid
Typical Insertion Loss <0.20 dB
Max. Insertion Loss <0.25 dB
Tensile Load 7.0kg
Bend Radius 3.8cm
Operating Temperature (C°) minus 20° to 60°
Attenuation (dB) 2.8 @ 850nm/0.8 @ 1310nm
Bandwidth OFL (MHz x km) 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm
IL RL<0.25dB
UPC Singlemode >55dB
UPC Multimode RL>36dB
APC RL>60
