Specifications:

• Operating Temperature range: -15 to +55?(-41to +95°F)
• Operating Humidity range: 5 to 90%RH (No Condensation)
• Video Amplifier Bandwidth: 140mHz
• Input Video signal: 5.0Volts P-P (TTL) Single Link
• Output Video: HDMI1.3b+HDCP 1.2v
• Vertical Frequency Range: 60Hz
• Date transfer speed: 2.25Gbpsx3
• Power supply: 5VDC
• Dimension (L×W×H): 115x62x25mm
• Weight:190g



Package Contents:

• HDMI Splitter
• 5VDC switch mode power supply
• Instruction manual

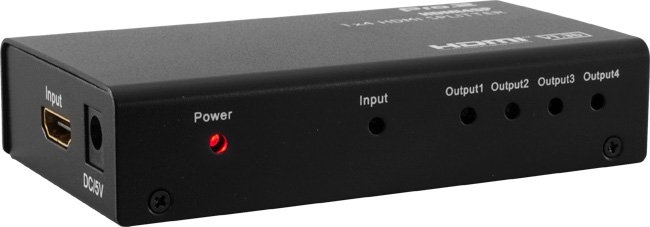

4 WAY HDMI SPLITTER 1 IN 4 OUTFeatures:One input HDMI1.3 signal can be split to 4 HDMI1.3 signalSupports 480p,720p,1080i and 1080p video formatsSupports 3D HDCP compliantSupports HDMI 1.3 deep color 36bit and signal retimingSupports digital audio format,such as LPCM/Dolby-AC3/DTS7.1/DSD Specifications: Operating Temperature range: -15 to +55?(-41to +95°F) Operating Humidity range: 5 to 90%RH (No Condensation) Video Amplifier Bandwidth: 140mHz Input Video signal: 5.0Volts P-P (TTL) Single LinkOutput Video: HDMI1.3b+HDCP 1.2v Vertical Frequency Range: 60Hz Date transfer speed: 2.25Gbpsx3 Power supply: 5VDC Dimension (L×W×H): 115x62x25mm Weight:190g Package Contents:HDMI Splitter5VDC switch mode power supplyInstruction manual
