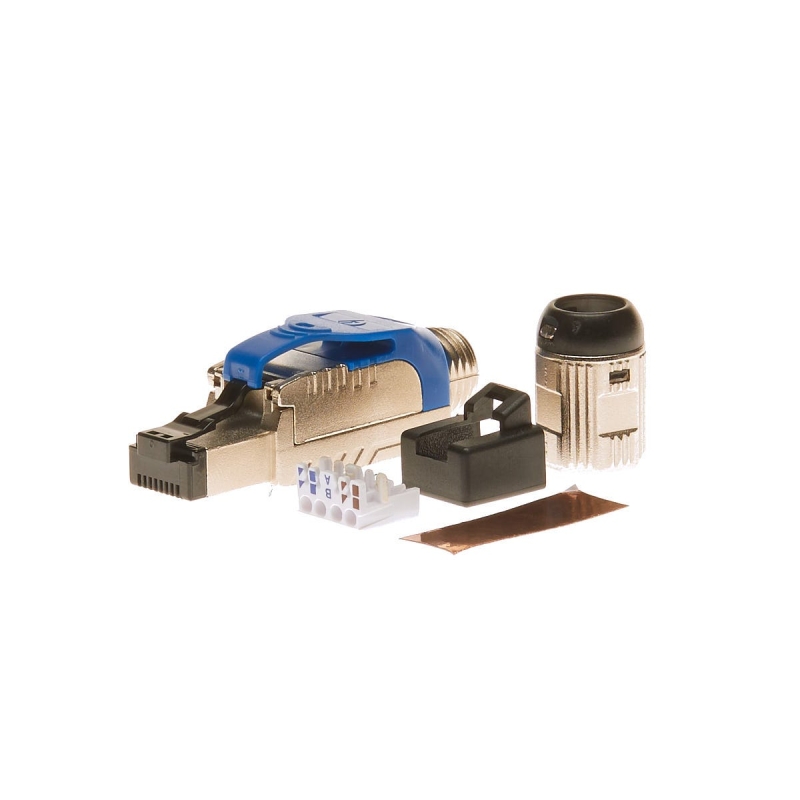

4Cabling Cat6A Shielded Field Termination Toolless Plug 010.005.1020
SKU
275293
Brand
MPN
010.005.1020
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$19.00
Buy Now And Earn 19 Reward Points!
DETAILS

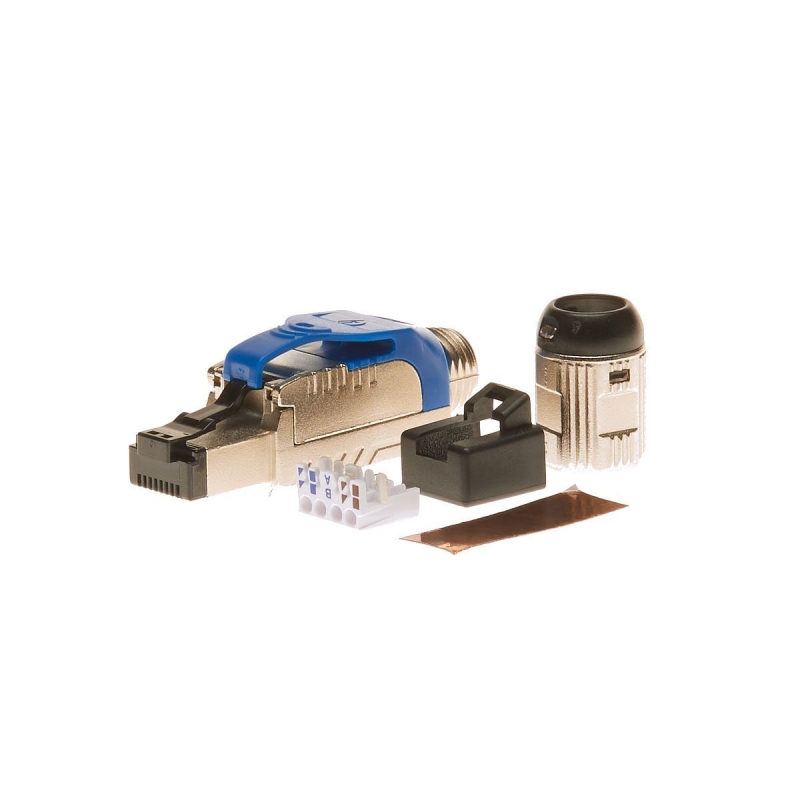

4CABLING CAT6A SHIELDED FIELD TERMINATION TOOLLESS PLUG
The 4Cabling Shielded Field Termination Plug is designed to terminate CAT6A or CAT7 with a larger diameter 23AWG - 26AWG.Perfect for quick and reliable installation.
Suitable to use with 4Cabling CAT6A Field Termination Plug Crimp Tool 001.006.0510
FEATURES:
- Fully Shielded with Zinc Alloy housing to prevent crosstalk
- Supports 23AWG - 26 AWG solid or stranded shielded CAT6A cable with an outside diameter between 6.0 and 7.5mm
- Open hinged design to simplify termination of shielded cable
MATERIAL:
- Extractor: PC, UL 94V-2
- Housing: Zinc die-casting with Nickel plated
-
RJ45 plug:
- Housing: PC, UL 94V-2
- Contact material: Phosphor bronze with 100 micro-inch nickel plated
- Contact finish: Min. 50 micro-inch gold plated on surface contact area.
- Cover: Zinc die-casting with Nickel plated
- Wire management bar: PC, UL 94-V2
-
IDC:
- Housing: PC, UL 94-V2
- Terminal: Titanium copper with tin plated
- Grounding contact: Zinc die-casting with Nickel plated
-
Boot:
- Housing: Zinc die-casting with Nickel plated
- SR: PC, UL 94V-2
- CAP: PC, UL 94V-2
- PCB: UL 94-V0
- Copper foil tape
- Dust cap: PE
PERFORMANCE:
- T568A & T568B wiring
- Insertion force: Max. 30N (IEC 60603-7-5).
- Retention strength: 7.7kg between jack and plug
- Operating temperature: -10C to 60C (ISO/IEC 11801. ANSI/TIA 569 C.2)
-
Life (mating cycles):
- 750 cycles min. (ISO/IEC 11801, ANSI/ TIA 568 C.2)
- IDC: Suitable for 23-26AWG stranded and solid wire, min. 20 installation cycles.
- Suitable for cable jacket OD: 6.0-7.5mm
WARRANTY
- 3-year limited warranty.
