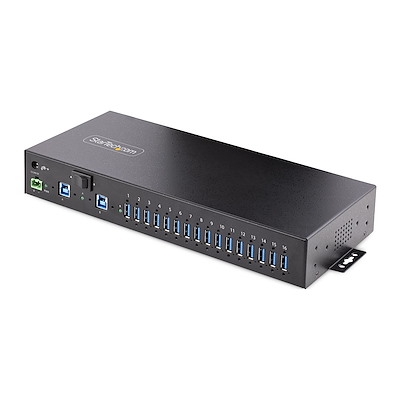

STARTECH 16 PORT INDUSTRIAL USB 3.0 HUB/SWITCH 5GBPS, METAL, MOUNTABLE 2YR 5G16AINDS-USB-A-HUB
16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)
FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections
POWER OPTIONS: The rugged USB 3.0 hub can be powered by either the DC barrel connection or DC 2-wire terminal block, using a 12 to 24V DC power source (DC adapter not incl.); Overcurrent protection protects connected devices from overdrawing power
POWER & CHARGE: When connected to a power source, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging
DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch
Warranty Information
Warranty
2 Years
Connector(s)
Connector A
1 - Terminal Block (2 Wire)
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
External Ports
16 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
Host Connectors
2 - USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps)
Environmental
Operating Temperature
32°F to 140°F (0°C to 60°C)
Storage Temperature
-4°F to 167°F (-20°C to 75°C)
Humidity
5% - 95% RH
Hardware
U Height
1U
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
Yes
Ports
16
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Chipset ID
Genesys Logic - GL3523
Indicators
LED Indicators
1 - Power (Green) - Solid Green - Indicates if the USB Hub is receiving power from either a USB Host or a DC Power Source
2 - USB Host Selection LEDs - Solid Green - Indicates which Host Device is currently selected
Packaging Information
Package Length
14.5 in [36.8 cm]
Package Width
10.7 in [27.3 cm]
Package Height
3.9 in [9.8 cm]
Shipping (Package) Weight
4.0 lb [1.8 kg]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
MTBF
122,383.8 Hours
Physical Characteristics
Color
Black
Product Length
0.5 in [1.3 cm]
Product Width
1.2 in [3.1 cm]
Product Height
0.2 in [4.4 mm]
Weight of Product
2.4 lb [1.1 kg]
Material
Steel
Power
Power Source
Not Included (DC/Terminal Block)
Input Voltage
12 ~ 24 DC
Plug Type
M
Terminal Block (2 Wire)
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
Available USB 3.2 Gen 1 Port
USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0
Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.

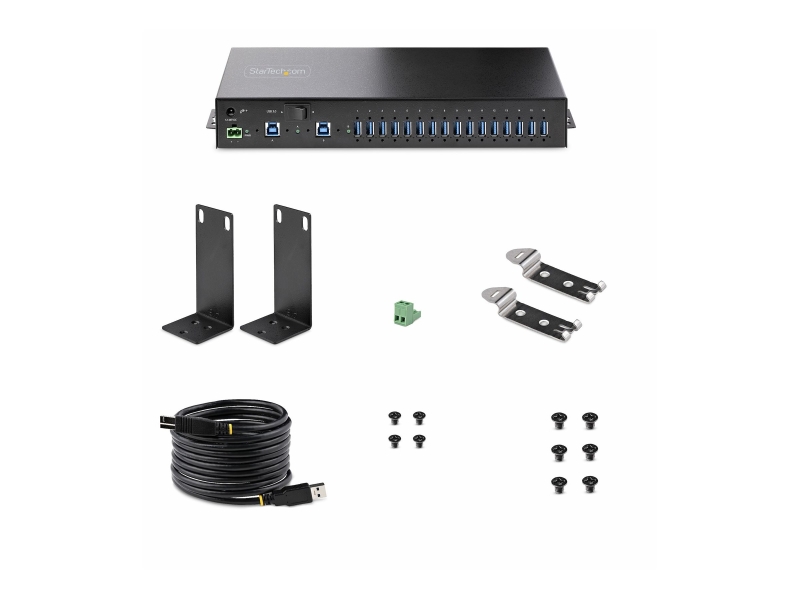

What's in the Box
Included in Package
1 - USB Hub
1 - 10 ft [3 m] USB-A to USB-B Cable
1 - Terminal Block Connector (Attached)
2 - Rack Mounting Brackets
2 - DIN Rail Brackets
4 - DIN Bracket Screws
6 - Rack Mounting Screws
1 - Quick-Start Guide
