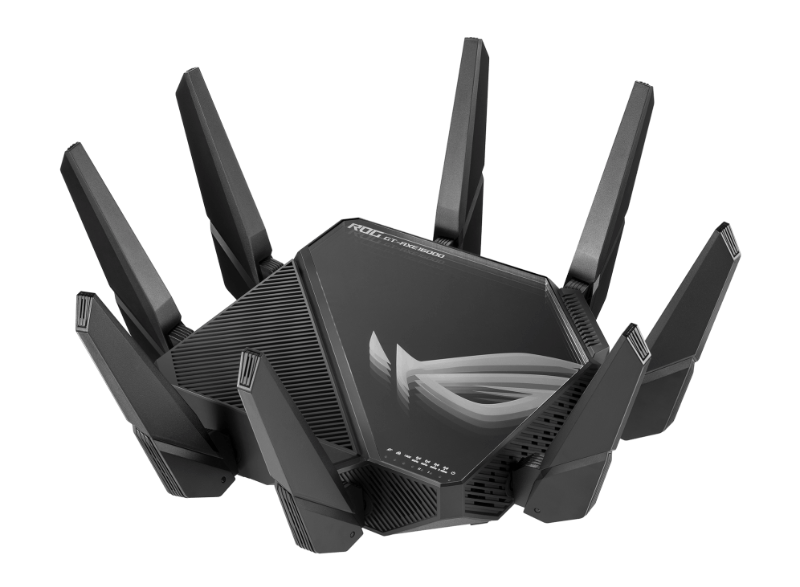

ASUS AXE16000 WIRELESS ROUTER, QUAD BAND, 10GbE(2), GbE(4), USB(2), ANT(12),3YR WTY GT-AXE16000
GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security World's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference. Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage. Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports. 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6. Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game serverWorld's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference. Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage. Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports. 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6. Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game server
| Model Name | GT-AXE16000 |
| Network Standard | WiFi 6 (802.11ax) WiFi 6E (802.11ax) Backwards compatible with 802.11a/b/g/n/ac Wi-F |
| Product Segment | AXE16000 ultimate AX/AXE performance |
| AX technology | Yes |
| Data Rate | 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps 6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna | External antenna x 8 (non-detachable) Internal antenna x 4 |
| Transmit/Receive | 2.4GHz 4x4 5GHz-1 4x4 5GHz-2 4x4 6GHz 4x4 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256MB NAND flash and 2GB DDR4 RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency | Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz |
| Ports | 1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port |
| Button | WPS Button, LED Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 6G x 1 10GE Port x 1 LAN x 1 WAN x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current |
| Package content | GT-AXE16000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 2425 |
| AiMesh | AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game | Game Boost/acceleration Game Radar WTFast ROG_First OpenNAT (Game Profile) |
| Alexa | Support Alexa skill |
| AiProtection | AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control | Parental Control Parental Control Customized Internet schedule Maximum Parental Control profile : 64 |
| Traffic Control | Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless | IPv6 MU-MIMO WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal WPS Wi-Fi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming |
| WAN | Explicit beamforming Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Dual WAN WAN Aggregation 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS |
| LAN | DHCP Server IGMP snooping IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 128 |
| VPN | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 HDD hibernation Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration | Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log New Device Connect Notification Login Captcha Connection Diagnosis Security Scan Auto Firmware Update |
