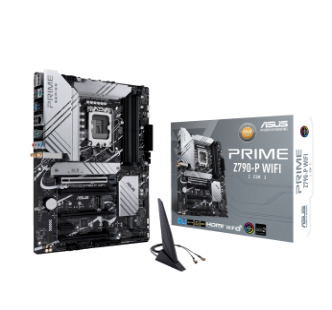

Asus ASUS, PRIME-Z790-P-WIFI-CSM, INTEL, INTEL 12 to 13th, LGA1700, 4x DDR5, 128G, Upto 7200+, PCIe 5 - 1x16 PRIME-Z790-P-WIFI-CSM
SKU
423178
Brand
MPN
90MB1CJ0-M1UAYC
Warranty
Standard Manufacturer's Warranty
$335.00
Buy Now And Earn 335 Reward Points!
PRIME Z790-P WIFI-CSM
- Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors,
- alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: DDR5 memory, Intel® Wi-Fi 6, PCIe® 5.0,
- Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®,
- Thunderbolt™ (USB4®) header support, 3 PCIe® 4.0 M.2
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink,
- hybrid fan headers and Fan Xpert 4 with AI Cooling II
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® Z790 Chipset |
| Form Factor | ATX 30.5 cm x 23.4 cm |
| I/O Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| LAN | Realtek 2.5 Gb LAN |
| PCI Slots | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Processor Support | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Socket | LGA1700 |
| Storage Interface | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
ASUS, PRIME-Z790-P-WIFI-CSM, INTEL, INTEL 12 to 13th, LGA1700, 4x DDR5, 128G, Upto 7200+, PCIe 5 - 1x16
