ASUS, PROART-Z790-CREATOR-WIFI, INTEL, INTEL 12 to 13th, LGA1700, 4x DDR5, 192G, Upto 7200+, PCIe 5 - 2x16 PROART-Z790-CREATOR-WIFI
SKU
419737
Brand
MPN
90MB1DV0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$906.00
Buy Now And Earn 906 Reward Points!

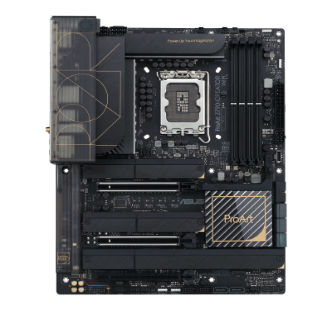

ProArt logoZ790-CREATOR WIFI
The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel® Core™ processors with 16+1 teamed power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including Thunderbolt™ 4 (USB4® compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches.
Specifications
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® Z790 Chipset |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| I/O Connectors | Rear USB (Total 8 ports) 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, 2 x DisplayPort (Input only), 1 x HDMI® port, 1 x ASUS Wi-Fi Module, 1 x Marvell® AQtion 10Gb Ethernet port, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button |
| Integrated CPU Graphics | |
| LAN | 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel® Z790 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| RAID | Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/1 |
| RAM Type/Bus/Max | |
| Socket | LGA1700 |
| Storage Interface | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 8 x SATA 6Gb/s ports** |
| Warranty | |
| Weight | |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Wireless & Bluetooth | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3 |
