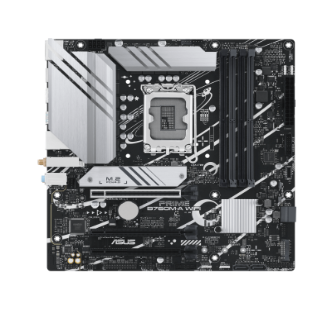

ASUS PRIME B760M-A WIFI//LGA1700,B760,USB3.2 GEN 2,WIFI6,MB/CSM PRIME-B760M-A-WIFI-CSM
SKU
425119
Brand
MPN
90MB1EL0-M1UAYC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $248.00 Regular Price $285.00
Buy Now And Earn 248 Reward Points!
Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® B760 Chipset |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| I/O Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 2 x HDMITM ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Integrated CPU Graphics | 1 x DisplayPort, 2 x HDMITM ports |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| PCI Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Processor Support | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II |
| Socket | Intel® Socket LGA1700 |
| Storage Interface | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2 |
