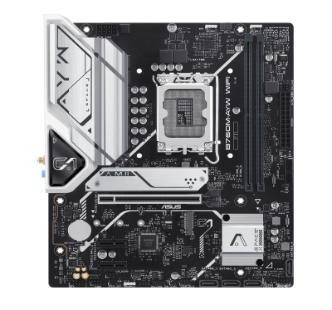

Asus ASUS, B760M-AYW-WIFI, INTEL, LGA1700, B760, 2x DDR5, 96G, Upto 8000, PCIe 4 - 1x16 B760M-AYW-WIFI
SKU
424147
Brand
MPN
90MB1FK0-M0UAY0
Warranty
Standard Manufacturer's Warranty
$232.00
Buy Now And Earn 232 Reward Points!
ASUS B760M-AYW WIFI, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, WiFi 6, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet , WiFi 6 and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® B760 Chipset |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| I/O Connectors | Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports; 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks |
| Integrated CPU Graphics | |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots |
| Processor Support | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP) |
| Socket | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6, Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.3 |
