ASUS Z790-AYW WIFI W // LGA1700, Z790, USB 10Gbps, MB Z790-AYW-WIFI-W
SKU
422464
Brand
MPN
90MB1HT0-M0UAY0
Warranty
Standard Manufacturer's Warranty
$380.00
Buy Now And Earn 380 Reward Points!

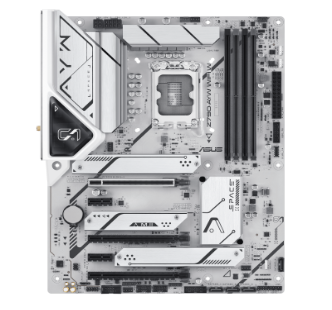

Z790-AYW WIFI W
ASUS Z790 series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Z790-AYW WIFI W provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® Z790 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button; Front USB (Total 9 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI port |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot; Intel® Z790 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode), 2 x PCIe 4.0 x1 slots |
| Processor Support | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory, Dual channel memory architecture, Supports Intel® Extreme Memory Profile (XMP) memory module, OptiMem II |
| Socket | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Storage Interface | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s port |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.3 |
