Asus ROG MAXIMUS Z890 HERO/ATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 9200MHz/1x PCIE5.0(CPU), 2xPCIE4.0(Chipset x16/x1)/4x M.2 (CPU), 2x M.2(Chipset) ROG-MAXIMUS-Z890-HERO
SKU
422451
Brand
MPN
90MB1ID0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,256.00 Regular Price $1,444.00
Buy Now And Earn 1256 Reward Points!

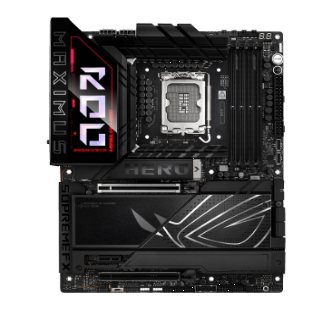

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Chipset | Intel® Z890 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x Thunderbolt™ 4 USB Type-C® ports, 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®), 4 x USB 5Gbps ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 1 x Realtek 5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button , 1 x Clear CMOS button; Front USB (Total 10 ports): 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+), 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes); Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Processor Support | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 192GB, DDR5, Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*, Dual channel memory architecture, Supports Intel® Extreme Memory Profile (XMP) memory module, Supports DIMM Flex, NitroPath DRAM Technology, DIMM FIT, ASUS Enhanced Memory Profile III (AEMP III) |
| Socket | LGA1851 |
| Storage Interface | Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® Z890 Chipset M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate, Bluetooth® v5.4 |
ROG MAXIMUS Z890 HERO/ATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 9200MHz/1x PCIE5.0(CPU), 2xPCIE4.0(Chipset x16/x1)/4x M.2 (CPU), 2x M.2(Chipset)
