Asus ROG MAXIMUS Z890 APEX/ATX/INTEL LGA1851/2x DDR5 DIMM max 96GB/Max 9600MHz/2x PCIE5.0(CPU), 2xPCIE4.0(Chipset x4/x4)/4x M.2 (CPU), 2x M.2(Chipset) ROG-MAXIMUS-Z890-APEX
SKU
422449
Brand
MPN
90MB1IP0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,275.00 Regular Price $1,467.00
Buy Now And Earn 1275 Reward Points!

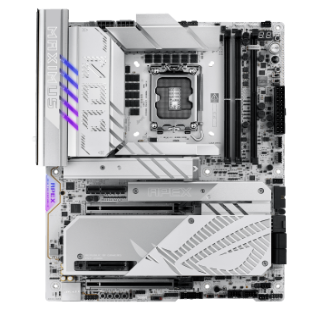

ROG Maximus Z890 APEX
The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Chipset | Intel® Z890 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x Thunderbolt™ 4 ports (USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 4 x USB 10Gbps ports (4 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button, 1 x PS/2 keyboard/mouse combo port; Front USB (Total 10 ports): 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+), 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Support Intel® Core™ Ultra Processors(Series 2): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes); Intel® Z890 Chipset: 2 x PCIe 4.0 x4 slots |
| Processor Support | Support Intel® Core™ Ultra Processors(Series 2) , LGA1851; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| RAM Type/Bus/Max | 2 x DIMM slots, max. 96GB, DDR5; Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual Channel Memory Architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; ASUS Enhanced Memory Profile III (AEMP III); Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Socket | LGA1851 - Support Intel® Core™ Ultra Processors(Series 2) |
| Storage Interface | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) , Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate, Bluetooth® v5.4 |
ROG MAXIMUS Z890 APEX/ATX/INTEL LGA1851/2x DDR5 DIMM max 96GB/Max 9600MHz/2x PCIE5.0(CPU), 2xPCIE4.0(Chipset x4/x4)/4x M.2 (CPU), 2x M.2(Chipset)
