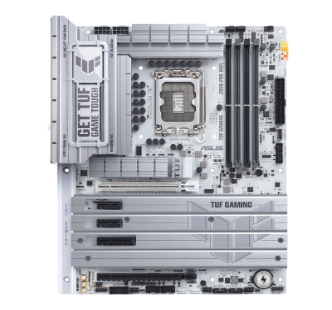

Asus TUF Z890 PRO/ATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 9066MHz/1x PCIE5.0(CPU), 4xPCIE4.0(Chipset x16/x4/x1/x1)/2x M.2 (CPU), 2x M.2(Chipset) TUF-GAMING-Z890-PRO-WIFI
SKU
422463
Brand
MPN
90MB1IR0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $644.00 Regular Price $741.00
Buy Now And Earn 644 Reward Points!
TUF GAMING Z890-PRO WIFI
ASUS TUF GAMING Z890-PRO WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® Z890 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x Thunderbolt™ 4 USB Type-C® ports, 6 x USB 10Gbps ports (6 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button; Front USB (Total 7 ports): 1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI™ port, 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Intel® 2.5Gb Ethernet, TUF LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot; Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 4.0 x1 slots |
| Processor Support | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 192GB, DDR5 |
| Socket | LGA1851 |
| Storage Interface | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4 |
TUF Z890 PRO/ATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 9066MHz/1x PCIE5.0(CPU), 4xPCIE4.0(Chipset x16/x4/x1/x1)/2x M.2 (CPU), 2x M.2(Chipset)
