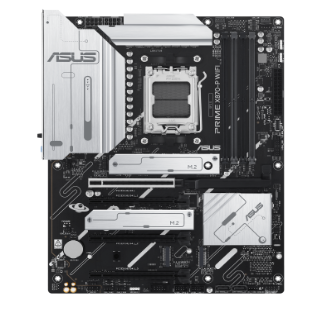

ASUS PRIME X870-P WIFI-CSM MB X870, 4x DDR5, 1x PCI-E 5.0 x16, 4x M.2 PRIME-X870-P-WIFI-CSM
SKU
424154
Brand
MPN
90MB1IS0-M0UAYC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $566.00 Regular Price $650.00
Buy Now And Earn 566 Reward Points!
Prime X870-P WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button; Front USB (Total 7 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870 Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 192GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Storage Interface | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4 |
