ASUS AMD AM4 X570 ATX with PCIe 4.0, dual M.2, Wi-Fi, 12+2 with Dr. MOS power stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting TUF-GAMING-X870-PLUS-WIFI
SKU
424158
Brand
MPN
90MB1IU0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $669.00 Regular Price $770.00
Buy Now And Earn 669 Reward Points!

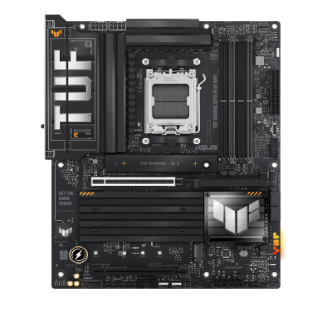

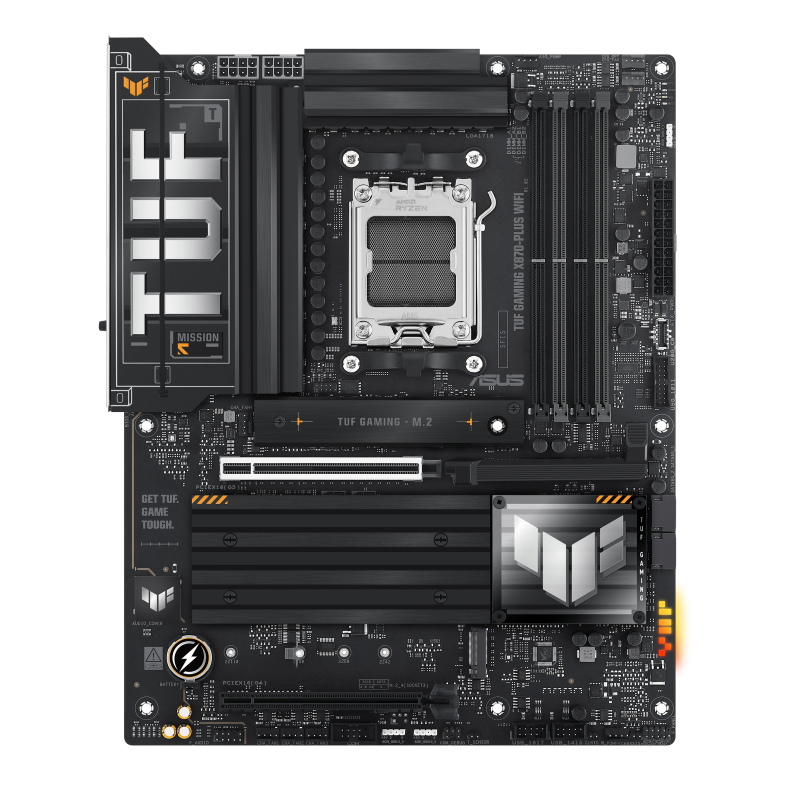

TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm |
| I/O Connectors | Back Panel I/O Ports: 2 x USB4® (40Gbps) (2 x USB Type-C®) ports, 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 1 x USB 2.0 port (1 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button; Front USB (Total 7 ports): 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD X870 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 192GB, DDR5, Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM, Dual channel memory architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Storage Interface | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4 |
ASUS AMD AM4 X570 ATX with PCIe 4.0, dual M.2, Wi-Fi, 12+2 with Dr. MOS power stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
