Asus PRIME Z890M PLUS/MATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 8400MHz/1x PCIE5.0(CPU), 3xPCIE4.0(Chipset x16/x16/x16)/1x M.2 (CPU), 2x M.2(Chipset) PRIME-Z890M-PLUS-WIFI-CSM
SKU
422446
Brand
MPN
90MB1J80-M0UAYC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $485.00 Regular Price $557.00
Buy Now And Earn 485 Reward Points!

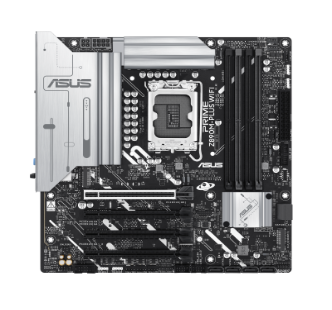

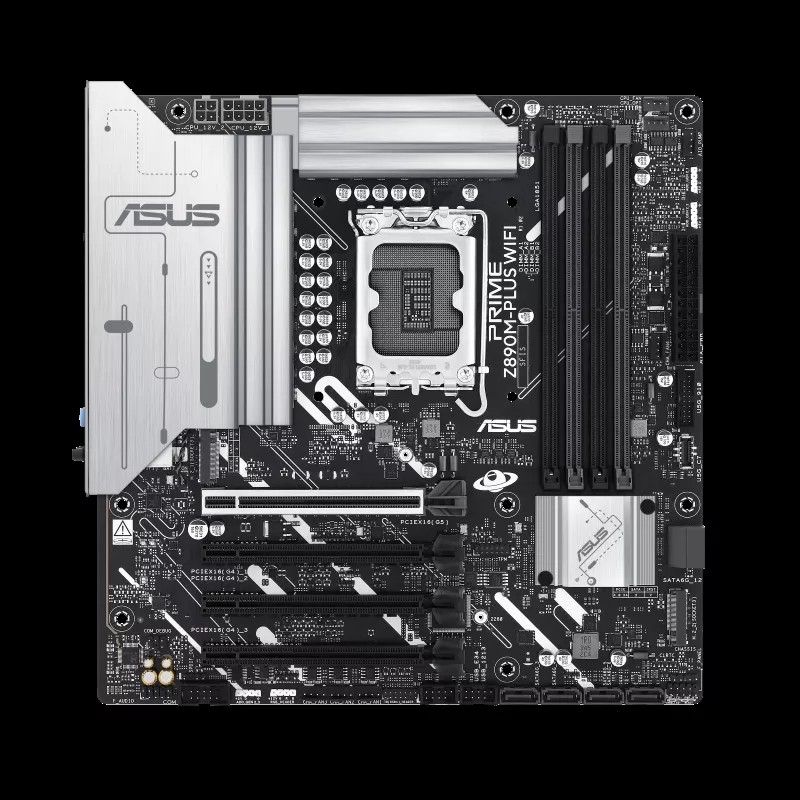

Prime Z890M-PLUS WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® Z890 Chipset |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm |
| I/O Connectors | Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode), 1x USB 10Gbps port (1 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button; Front USB (Total 7 ports): 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI™ port, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot; Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Processor Support | Supports Intel® Core™ Ultra Processors(Series 2), LGA1851 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 192GB, DDR5; Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile III(AEMPIII) |
| Socket | Supports Intel® Core™ Ultra Processors(Series 2), LGA1851 |
| Storage Interface | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4 |
PRIME Z890M PLUS/MATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 8400MHz/1x PCIE5.0(CPU), 3xPCIE4.0(Chipset x16/x16/x16)/1x M.2 (CPU), 2x M.2(Chipset)
