Asus PROART Z890 CREATOR WIFI/ATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 9066MHz/2x PCIE5.0(CPU), 1xPCIE4.0(Chipset x16)/2x M.2 (CPU), 3x M.2(Chipset) PROART-Z890-CREATOR-WIFI
SKU
422447
Brand
MPN
90MB1JD0-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,034.00 Regular Price $1,189.00
Buy Now And Earn 1034 Reward Points!

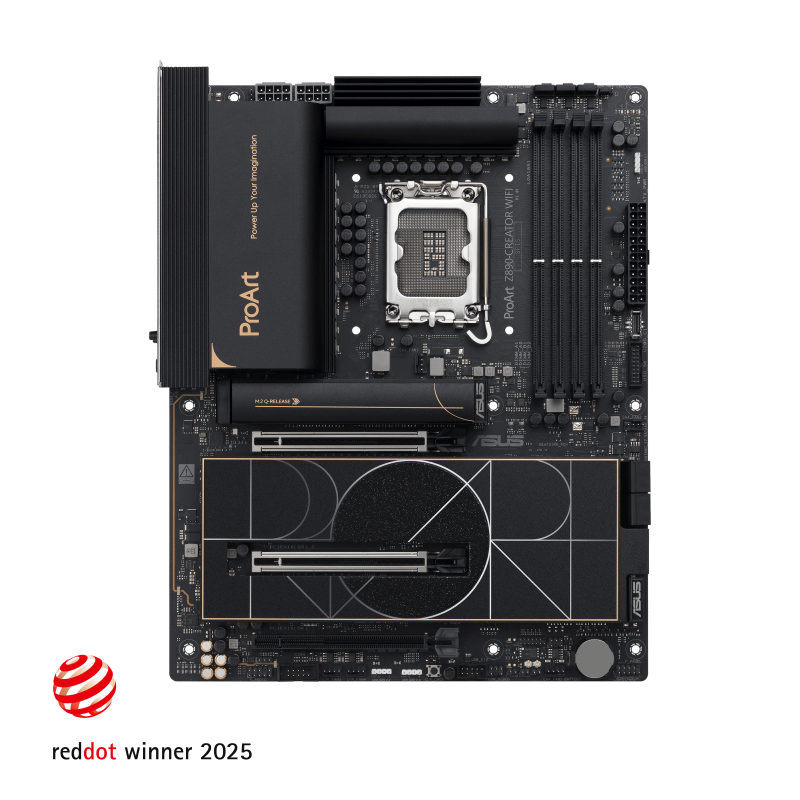

ProArt logoZ890-Creator WiFi
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.
Specifications
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® Z890 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x Thunderbolt™ 5 USB Type-C® ports, 1 x Thunderbolt™ 4 USB Type-C® port, 6 x USB 10Gbps ports (6 x Type-A), 1 x USB 2.0 port (1 x Type-A), 1 x DisplayPort (Input only), 1 x HDMI™ port, 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port, 1 x Intel® 2.5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x BIOS FlashBack™ button Front USB (Total 5 ports): 1 x USB 20Gbps (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs, 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | Intel® Core™ Ultra Processors (Series 2): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes); Intel® Z890 Chipset: *1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 192GB, DDR5; Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); Support DIMM Fit; Support DIMM Flex |
| Socket | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Storage Interface | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s port |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate, Bluetooth® v5.4 |
PROART Z890 CREATOR WIFI/ATX/INTEL LGA1851/4x DDR5 DIMM max 192GB/Max 9066MHz/2x PCIE5.0(CPU), 1xPCIE4.0(Chipset x16)/2x M.2 (CPU), 3x M.2(Chipset)
