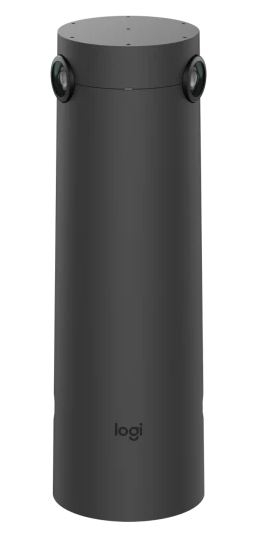

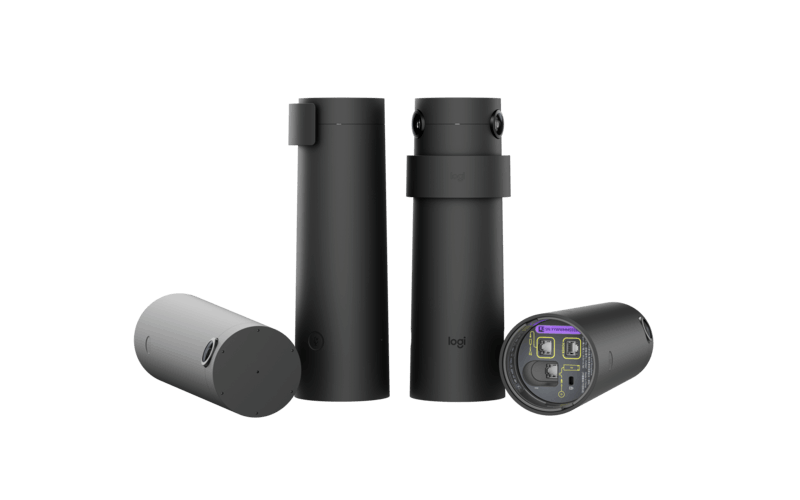

LOGITECH SIGHT AI POWERED TABLETOP 4K VC CAMERA, 315 DEGREE FOV, TEAMS/ZOOM 2Y WTY - GRAPH 960-001510

SKU
406716
Brand
MPN
960-001510
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$2,494.00
Buy Now And Earn 2494 Reward Points!
LOGITECH SIGHT AI POWERED TABLETOP 4K VC CAMERA, 315 DEGREE FOV, TEAMS/ZOOM 2Y WTY - GRAPH
  • DIMENSIONS

    Table-mounted

    • Height: 299.0 mm
    • Width: 169 mm
    • Depth: 169 mm

    Grommet-mounted

    • Height: 291.2 mm
    • Width: 93.4 mm
    • Depth: 93.4 mm
    • Grommet hole 25 mm or larger
    Weight: 1.5 kg
  • COMPATIBILITY

    Power type: 802.3at Type 2 "PoE+" power or equivalent power supply (user supplied)
    CAT Cable: Cat6 or greater
    Maximum CAT Cable Length: Between Sight Dongle and Sight: 40 m
    USB Mode: Windows 10, Windows® 11 or later, macOS (two most recent versions)
    Appliance Mode: Room solution software license (not included), Rally Bar or Rally Bar Mini
    Latest version of Logitech Collab OS

    PORTS AND INTERFACES

    • 1 x RJ45 (audio/video data over USB)
    • 1 x RJ45 (Power Over Ethernet)
    • 1 x RJ45 (Daisychain - Rally Mic Pods)
  • TECHNICAL SPECIFICATIONS

    Video Platform Compatibility

    • Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.

    General Specifications

    • Built-in Components
      • 7 beamforming microphones, dual lens camera, Logitech Collab OS platform
    • Device Management
      • Logitech Sync
    • Camera
      • Sensor resolution: 4K
      • Zoom: X1
      • Horizontal Field of View: 315°
      • Vertical Field of View: 97°
      • Diagonal Field of View: 180°
      • Focal Length: 1.87 mm
      • Depth of Field: 50 cm-5 m
      • Frame Rate (max): 60 fps
    • Microphone Specifications
      • Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
      • Pickup Range: 2.3 m radius
      • Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
      • Frequency Response: 90Hz – 16 kHz
      • Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa
      • Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
      • Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
      • Additional mic pods
        • Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs
        • Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs
        • Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs

    ENVIRONMENTALS

    • Operating Temperature: 0 to 40°C @ 10% - 90% RH (Non-condensing)
    • Storage Temperature: -40 to 70°C @ 10% - 90% RH (Non-condensing)
  • PACKAGE CONTENTS

    • Sight camera
    • Sight dongle
    • Mic pod dongle
    • Privacy shade
    • Grommet mount
    • Table mount
    • Tripod mount
    • User documentation
    •
  • WARRANTY INFORMATION

    Standard: 2-year limited hardware warranty included
    Extended: Additional one- and three-year extended warranties available at the time of hardware purchase.
    Contact your reseller for availability.
  • PART NUMBER

    • Graphite : 960-001510
    • White : 960-001503
