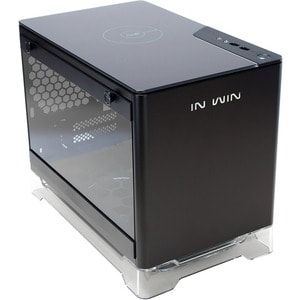

In Win A1-black Mini-itx Pc Case Tempered Glass Side Panel Usb 3.0* 2 Hd Audio Wireless Charging

SKU
263786
Brand
In Win
Manufacturer Link
MPN
A1-BLACK
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$256.00
Buy Now And Earn 256 Reward Points!

QUICK OVERVIEW

STATION ATX 600W 80PLUS BRONZE POWER A1-BLACK
Add to Compare

Exquisite Detailing from Top to Base

The modern Scandinavian style design is complemented with tempered glass and brushed aluminium. The A1 white presents a stunning and sleek appearance; the black version demonstrates a simple and modern vibe.

CPU
160mm
Graphics Cards
300mm

Squaring Infinite Possibilities

The square structure provides a hassle-free installation, and the capacity to house powerful hardware in its Mini-ITX form. The A1 supports a CPU heatsink height up to 160mm and accommodates up to 300mm length graphics cards.

Wireless Charging Station

Take charge of your mobile devices with the all new wireless charging feature! Simply place your Qi enabled devices in the designated charging area on top. In Win’s included PSU offers continuous power even when your PC is off. Charge anytime without being wired!

* The wireless Qi charger features a 1-year limited warranty.

User Friendly Design

The 3mm tempered glass side panel can be easily removed with its tool-less design by pulling the tabs and lifting up. A specialized GPU holder provides extra support to graphics cards to prevent them from sagging. A dust filter on the bottom reduces unwanted dust.

Floating in A1r

The bottom RGB effect reflects through the tinted transparent stand, creating the illusion of floating! Floating powered by RGB.

* If your motherboard doesn't have an RGB header, please use the provided LED-SATA connector and LED 4-Pin header to set default LEDs.

In Win 600W PSU

The In Win 600W PSU has an 80 PLUS Bronze certification. The PSU is prebuilt within the A1 with the cables already managed and is accommodated with two GPU connectors (PCI-E 6+2-pin) for high-end graphics cards. Top PSU chamber makes the system cleaner, and creates an ideal climate for the motherboard and graphics cards.


　

Specifications

Model A1
Part Number A1Black / IW-A1-BLA-P
A1White / IW-A1-WHI-P
Colors Black, White
Case Type Mini ITX Tower
Case Material SECC, Tempered Glass
M/B Compatibility Mini-ITX
Expansion Slots PCI-E x 2
Maximum Compatibility VGA Card Length: 300mm
CPU Heatsink Height :160mm
Front Ports 2 x USB 3.0
HD Audio
Internal Drive Bays 2 x 2.5"
Thermal Solution Compatibility 1 x 120mm Side Fan
1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Bottom Fan
Power Supply Compatibility In Win 600W PSU Included
Product Dimension
(H x W x D)
with screw & handle height		 273 x 216 x 355.5mm
(10.7" x 8.2" x 14")
Product Dimension
(H x W x D)		 273 x 210 x 355.5mm
(10.7" x 8.2" x 14")
Package Dimension
(H x W x D)		 344 x 295 x 414 mm
(13.5" x 11.6" x 16.2")
Net Weight 6 kg/ 13.2lbs
Gross Weight 6.9 kg/ 15.3lbs
* In Win products comply with RoHS regulation.
* Specifications may vary based on different regions.
