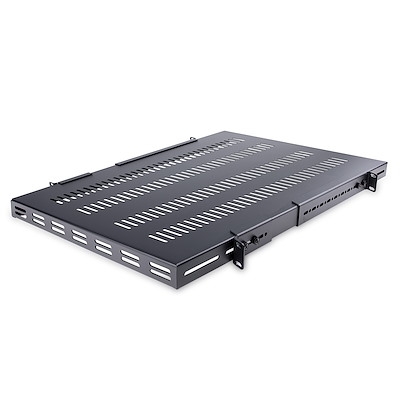

STARTECH 1U 4-POST ADJUSTABLE VENTED SERVER RACK MOUNT SHELFLTW ADJSHELFHDV
UNIVERSAL 19'' FIT: This vented server rack mount shelf works with 19in 4-post server racks and has a fixed surface depth of 27.56in, and an adjustable mounting depth range of 19.5-38in for your data, networking or other small-form tools / equipment
COMPACT DESIGN: The adjustable vented rack shelf features a very compact form factor, making it ideal for non-rackmount equipment, tools and peripherals in your home, studio or office space
HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy IT-grade cabinet shelf ensures long term durability and supports a total weight load of 330 lb / 150 kg
VERSATILE FUNCTIONALITY: With a surface depth of 27.56in and adjustable mounting depth range of 19.5-38in, this shelf can work with any 19 inch 4-post cabinet or equipment rack - It provides additional storage space for your tools or A/V accessories
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this adjustable vented rack shelf is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Warranty Information
Warranty
Lifetime
Hardware
Cable Management
No
U Height
Frame Type
Steel
Mounting Options
Front Mount (Front and Rear)
Industry Standards
EIA RS310-D
Packaging Information
Package Height
3.9 in [10.0 cm]
Package Length
30.1 in [76.5 cm]
Shipping (Package) Weight
14.9 lb [6.8 kg]
Package Width
20.9 in [53.0 cm]
Package Quantity
1
Performance
Weight Capacity (Stationary)
330.8 lb [150 kg]
General Specifications
Weight Capacity: Rev 01 - up to 250lbs / 113kg; Rev 02 or above - up to 330lbs / 150kg
Physical Characteristics
Product Height
1.8 in [4.5 cm]
Product Length
27.6 in [70.0 cm]
Weight of Product
12.5 lb [5.6 kg]
Product Width
17.6 in [44.6 cm]
Color
Black
Material
Steel
Rail Thickness
0.0 in [1.2 mm]
Maximum Mounting Depth
38.3 in [97.4 cm]
Minimum Mounting Depth
19.5 in [49.5 cm]
What's in the Box
Included in Package
1 - 1U High Cap Adjustable Rack Shelf
1 - Instruction Manual
1 - 1U Shelf Body
2 - Front Mounting Brackets
2 - Rear Mounting Brackets
8 - M6x12mm Mounting Bracket Screws
8 - M6x12 mm Screws
8 - M6 Cage Nuts
8 - M6 Plastic Washer
1 - Quick-start Guide
