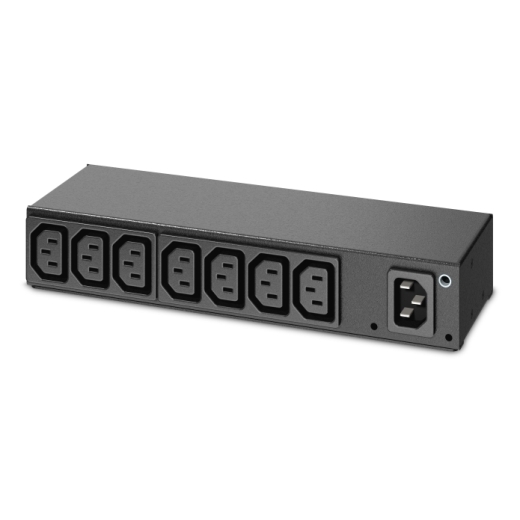

APC (AP6015A) RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13
SKU
374240
Brand
MPN
AP6015A
Warranty
Standard Manufacturer's Warranty
$113.00
Buy Now And Earn 113 Reward Points!
AP6015A Features
Key Features
Rack Height
1U
Output Connections
(8) IEC 60320 C13
Nominal Output Voltage
100V, 120V, 200V, 208V, 230V, 240V
Nominal Input Voltage
100V, 120V, 200V, 208V, 230V, 240V

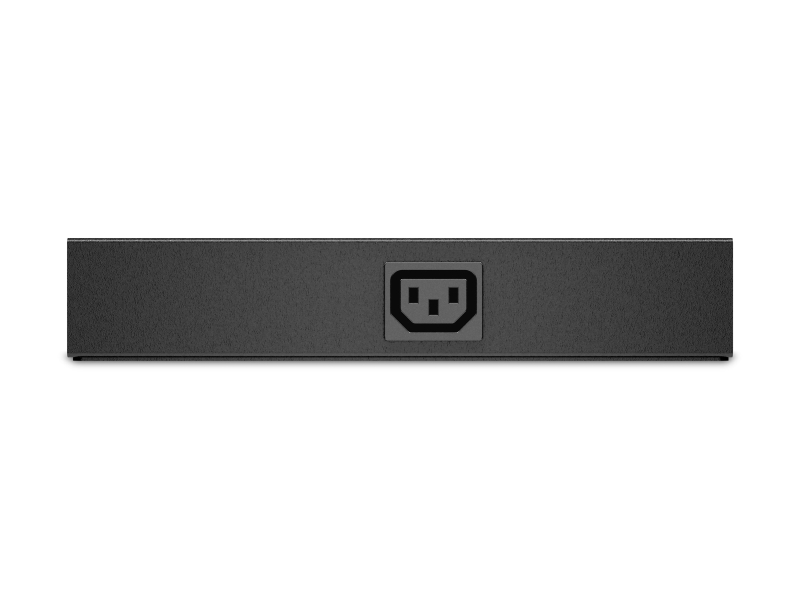

Input Connections
IEC 60320 C14
RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13
Reliable rack power distribution
Includes: Installation guide, Safety guide
NetShelter Basic Rack PDUs Features & Benefits
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Total cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Product Description | APC Basic Rack PDU AP6015A - power distribution unit |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 1U |
| Weight | 910 g |
| Input Voltage | AC 100/120/200/208/230/240 V |
| Output Voltage | AC 100/120/200/208/230/240 V |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output connectors | 8 x power IEC 60320 C13 |
| Colour | Black |
| Dimensions (WxDxH) | 4.4 cm x 9.3 cm x 24 cm |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: AR3103SP, AR3106SP, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMT1500R2I-AR, SMT2200I-AR, SMT2200R2I-AR, SMT3000I-AR, SMT3000R2I-AR, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1500RM2UCNC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT1500RMXLI, SRT5KRMXLW-TW |
