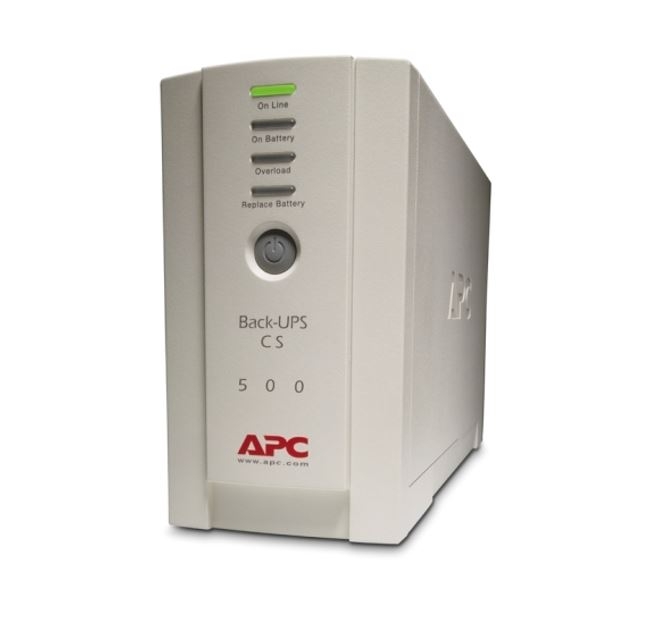

main product photo

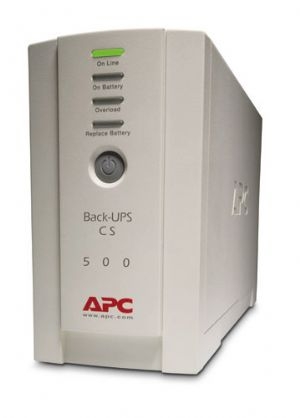

Apc Back-ups Bk500ei Cs 500va 300watts, Usb, Hot Swap Battery Bk500ei

SKU
232527
Brand
Apc
Manufacturer Link
MPN
BK500EI
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$195.00
Buy Now And Earn 195 Reward Points!
Add to Compare

BK500EIFeatures

APC Back-UPS 500, 230V

  • Serial connectivity
    Provides management of the UPS via a serial port.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).

Back-UPSFeatures & Benefits

Marketing Features
  • Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Safety
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Protection
  • Battery and surge protected outlets
    Back up and protect your hardware and data during power outages, surges and spikes.
  • Surge only outlets
    Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
Manageability
  • LED status display
    Quickly understand unit and power status with visual indicators.
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions

Output

  • Output power capacity
    300Watts / 500VA
  • Max Configurable Power (Watts)
    300Watts / 500VA
  • Nominal Output Voltage
    230V
  • Output Frequency (sync to mains)
    47 - 63 Hz
  • Output Frequency (not synced)
    50/60 Hz +/-1 Hz
  • Topology
    Standby
  • Waveform type
    Stepped approximation to a sinewave
  • Output Connections
    (1) IEC 320 C13 (selector_surgetitle)
    (2) IEC Jumpers (selector_surgetitle)
    (3) IEC 320 C13 (Battery Backup)
  • Transfer Time
    6ms typical : 10ms maximum

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320-C14 inlet
  • Cord Length
    1.83meters
  • Input voltage range for main operations
    180 - 266V
  • Input voltage adjustable range for mains operation
    160 - 300V
  • Number of Power Cords
    2
  • Maximum Input Current
    7.0A

Batteries & Runtime

Communications & Management

  • Interface Port(s)
    Optional Simple Signalling RS232 cable , USB
  • Control panel
    LED status display with On Line : On Battery : Replace Battery and Overload indicators
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating
    310Joules
  • Data Line Protection
    Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
  • Filtering
    Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    165mm , 16.5cm
  • Maximum Width
    91mm , 9.1cm
  • Maximum Depth
    284mm , 28.4cm
  • Net Weight
    6.32kg
  • Shipping weight
    7.05kg
  • Shipping Height
    178mm , 17.8cm
  • Shipping Width
    241mm , 24.1cm
  • Shipping Depth
    368mm , 36.8cm
  • Color
    Beige
  • Master Carton Units
    1.0
  • Units per Pallet
    48.0
  • SCC Codes
    107 31304 01635 6

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    40.0dBA
  • Online thermal dissipation
    24.0BTU/hr

Conformance

  • Approvals
    C-tick, CE, EN 50091-1, EN 50091-2, ENERGY STAR (EU), GOST, VDE
  • Equipment protection policy
    Lifetime : 100000 Euro, Lifetime : 50000 GBP
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
Output
• Output power capacity:300 Watts / 500 VA
• Max Configurable Power (Watts):300 Watts / 500 VA
• Nominal Output Voltage:230V
• Output Frequency (sync to mains):47 - 63 Hz
• Output Frequency (not synced):50/60 Hz +/-1 Hz
• Topology:Standby
• Waveform type:Stepped approximation to a sinewave
• Output Connections:
◦ (1) IEC 320 C13 (selector_surgetitle)
◦ (3) IEC 320 C13 (Battery Backup)

• Transfer Time:6ms typical: 10ms maximum

Input
• Nominal Input Voltage:230V
• Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320-C14 inlet Cord Length 1.83 meters
• Input voltage range for main operations:180 - 266 V
• Input voltage adjustable range for mains operation:160 - 300 V
• Number of Power Cords: 2
• Maximum Input Current:7.0 A

Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time:8 hour(s)
• Replacement Battery: RBC2
• RBC Quantity:1
• Battery Volt-Amp-Hour Capacity:83
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management
• Interface Port(s): Optional Simple Signalling RS232 cable, USB
• Control panel:LED status display with On Line: On Battery: Replace Battery and Overload indicators
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering
• Surge energy rating:310 Joules
• Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
• Filtering:Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449
