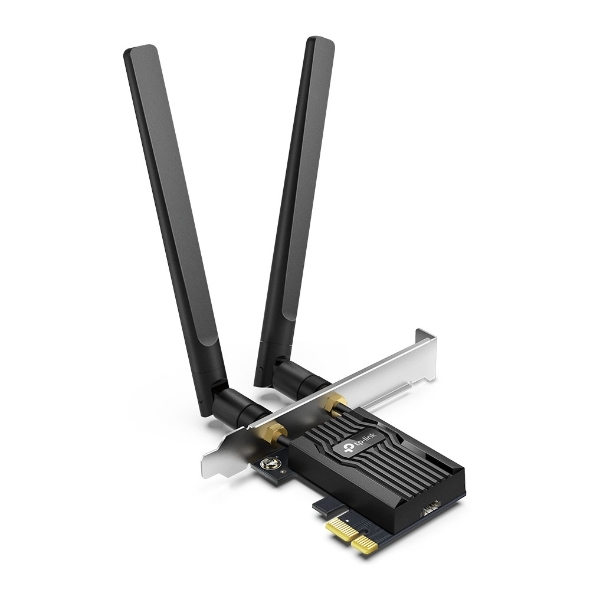

TP-LINK ARCHER TX55E AX3000 WIFI 6 BLUETOOTH 5.2 PCIE ADAPTER, 3YR ARCHER-TX55E

SKU
404305
Brand
MPN
ARCHER TX55E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$81.00
Buy Now And Earn 81 Reward Points!
HARDWARE FEATURES
Dimensions 4.72 x 3.09 x 0.82 (inches)
120 x 78.5 x 21 (mm)
Antenna Type Two High-Gain Dual Band Antennas
Chipset Intel Wi-Fi 6 Chipset
BLUETOOTH FEATURES
Standards and Protocols Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
Interface F_USB 2.0
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2/5.0/4.2/4.0
WLAN Signal Rate 5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Archer TX55E
Two High-Gain Antennas
Low-Profile Bracket
Standard Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Windows 10(64-bit) only
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TP-LINK ARCHER TX55E AX3000 WIFI 6 BLUETOOTH 5.2 PCIE ADAPTER, 3YR
