Asus 4ru Barebones Server Esc8000 G4 8 X Gpu Compatible Dual Xeon Socket 24 X Dimm 6 X 2.5" Hdd

SKU
268526
Brand
Asus
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$10,639.00
Buy Now And Earn 10639 Reward Points!

QUICK OVERVIEW

Bays iKVM 1600w RPSx 3 8 x PCI-E 3.0 x 16 90SF00H1-M00380
Add to Compare

High-density 4U GPU server support 8 GPUs

  • Powered by Intel® Xeon® Scalable Platform
  • High-density GPU server with hybrid computing power
  • ASUS-patented Adaptable Topology design
  • Scalable design for growing workloads
  • Comprehensive IT Infrastructure Management Solution
  • Efficient cooling with hot-swappable redundant fans and dedicated air tunnels
  • Exclusive thermal radar technology for energy efficiency
  • Simplified maintenance and management
  • Supports 100Gbps Intel® Dual Embedded Omni-Path Architecture
　
ESC8000 G4 features a powerful GPU architecture that supports up to eight high-performance NVIDIA® Quadro® or Tesla® GPU cards in a 4U chassis. With so much graphics power, ESC8000 G4 lets you accomplish demanding computing tasks more quickly and with greater efficiency. An optimized internal layout enables ESC8000 G4 to fit a wide variety of graphics cards — including dual-slot GPUs — with active or passive thermal modules.

　

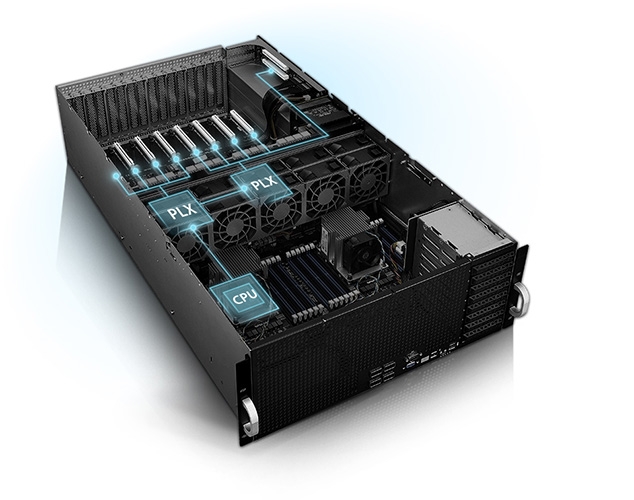

Patented Adaptable Topology design

ESC8000 G4 provides flexible system topology configuration options, including the ability to choose a single or dual root complex, making it ideal for deep learning requirements. The patented Adaptive Topology design enables users to switch the system topology easily via the intuitive web-based GUI of the ASUS ASMB9-iKVM server management solution, without changing any hardware configurations or cable routing.

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

Scalable design for growing workloads

ESC8000 G4 is designed for easy scalability to fit growing businesses and workloads. With eight PCIe Gen3 x16 slots that fit full-height, full-length GPU cards, two PCIe Gen3 x16 slots for high-speed networking cards, and one internal PCIe Gen3 x8 slot for an HBA/RAID card, ESC8000 G4 is ready to deliver high-density, parallel computing power.

It also features multiple interface types for flexible storage configurations, including dual PCIe or SATA M.2, and port-to-port dual OCuLink with Intel VROC technology for two hot-swappable 2.5" NVMe SSDs. ESC8000 G4 also fits up to eight 2.5” SATA 6Gbp/s HDDs or eight 2.5” SAS 12Gbp/s HDDs with an optional HBA card.

Comprehensive IT Infrastructure Management Solution

ESC8000 G4 features an embedded ASMB9-iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management. For more information, see the ASUS Control Center microsite.

　

Efficient cooling with hot-swappable redundant fans and dedicated air tunnels

Cooling an accelerator server handling extreme workloads at up to 3200 Watts of power consumption is a demanding task, so ESC8000 G4 is equipped with hot-swappable, redundant fans and dedicated air tunnels for the CPU, GPUs and DIMMs. Ten fans for the GPUs — five primary and five back-up fans — plus two coolers for the CPU ensure nonstop cooling performance for nonstop server operation.

　

* Default 5 fans for GPU, extra 5 fans are optional.

Hot-swappable, redundant fans

Dedicated air tunnels design

Exclusive thermal radar technology for energy efficiency

ESC8000 G4 features ASUS-exclusive thermal radar technology with ambient sensors placed on the CPUs, GPUs and DIMMs. This design provides internal and external temperature monitoring and enables dynamic fan curve adjustment, lowering fan power consumption up to 20% and reducing TCO which is ideal for extreme workload data center.

　


Ambient thermal sensors



　

Simplified maintenance and management

Easily Swappable Components

With the ingenious placement design, IT staff can swap key components with ease.

　

  • Tool-less Cover

    ESC8000 G4 has three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack.

    　

  • Front-bezel Q-Code

    ESC8000 G4 has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system.

    　

  • Quick initialization guidance

    ESC8000 G4 provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

    　

Supports 100Gbps Intel® Dual Embedded Omni-Path Architecture

ESC8000 G4 supports two of the latest Intel® Xeon® Scalable Family processors, featuring up to total 56 cores and 112 threads for leading performance. The server also has 24 memory slots that fit up to 3TB of DDR4 2666 memory for intensive computing. With two Skylake-F CPUs, ESC8000 G4 supports optional dual Intel Omni-Path (OPA 100GbE) configurations for cluster management.

Specifications

  • Processor / System Bus
    2 x Socket P (LGA 3647)
    Intel® Xeon® Scalable Processors Family
    Intel® Xeon® Scalable Processors Family with OMNI-PATH FABRIC
    *Refer to support page for more information
  • Core Logic
    Intel® Lewisburg PCH C621
  • Memory
    Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU)
    Capacity : Maximum up to 3072GB RDIMM
    Memory Type :
    DDR4 2666/2400 /2133 RDIMM
    DDR4 2666/2400 /2133 LRDIMM
    DDR4 2666/2400 /2133 LR-DIMM 3DS
    Memory Size :
    64GB, 32GB, 16GB, 8GB RDIMM
    64GB, 32GB LRDIMM
    128GB, 64GB LR-DIMM 3DS
    * Refer to support page for more information
  • Expansion Slots
    Full-length/Full-height
    8 x PCI-E x16 (Gen3 x16 link) , FH, FL
    Half-length/Low-profile
    Rear:
    Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link), LP, HL
    or
    Single root topology: 1 X PCI-E x16 (Gen3 x16 link), LP, HL
    Front:
    1 x PCI-E x8 (Gen3 x8 link) , LP, HL
  • Storage
    SATA Controller :
    Intel® C621
    8 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)
    or
    6 x SATA3 6Gb/s ports + 2 x NVMe drives + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    Intel®VROC (For Linux/Windows)
    (Support Software RAID 0/1 )
    SAS Controller :
    ASUS PIKE II 3008 8-port SAS HBA card
    ASUS PIKE II 3108 8-port SAS HW RAID card
    12G SAS Support
  • HDD Bays
    8 x Hot-swap 2.5" HDD Bays
  • Networking
    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2500 with 64MB VRAM
  • Front I/O Ports
    2 x USB 3.0 ports
    2 x USB 2.0 ports
    1 x VGA port
    1 x COM port
  • Rear I/O Ports
    2 x RJ-45 GbE LAN ports
    1 x RJ-45 Mgmt LAN port
  • Switch/LED
    Front Switch/LED:
    1 x Q-Code/Port 80 LED
    1 x Power switch/LED
    1 x Location switch/LED
    1 x HDD Access LED
    1 x Message LED
    Front Switch/LED:
    1 x Q-Code/Port 80 LED
    1 x Power switch/LED
    1 x Location switch/LED
    1 x HDD Access LED
    1 x Message LED
    2 x LAN LED
  • OS Support
    Windows® Server 2016
    Windows® Server 2012 R2
    RedHat® Enterprise Linux
    SuSE® Linux Enterprise Server
    CentOS
    Ubuntu
    VMware
    Citrix XenServer
    Fedora
  • Management Solution
    ACC
    On-Board ASMB9-iKVM for KVM-over-IP
  • Regulatory Compliance
    BSMI, CE, FCC(Class A)
  • Dimensions
    798mm x 439mm x 175.6mm
  • Form Factor
    4U
  • Power Supply
    2+1 Redundant 1600W 80PLUS Platinum Power Supply;
    100-127 / 200-240Vac, 12.9 / 9.5A（for each
    inlet）, 47-63Hz, Class I
  • Environment
    Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
