ACCELTEX AP AND OMNI OR PATCH ANTENNA ALL-THREAD DROP MOUNT ATS-DRPMNT-UNIV1-OOOP

SKU
371137
Brand
MPN
ATS-DRPMNT-UNIV1-OOOP
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$206.00
Buy Now And Earn 206 Reward Points!

AP AND OMNI OR PATCH ANTENNA ALL-THREAD DROP MOUNT

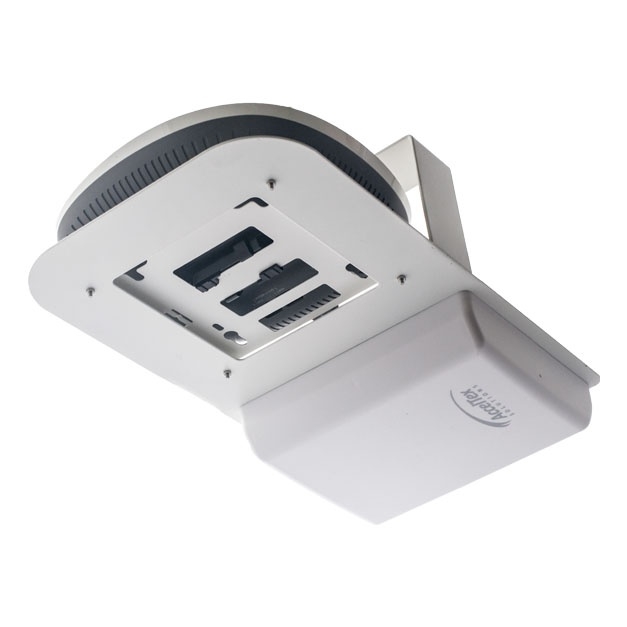

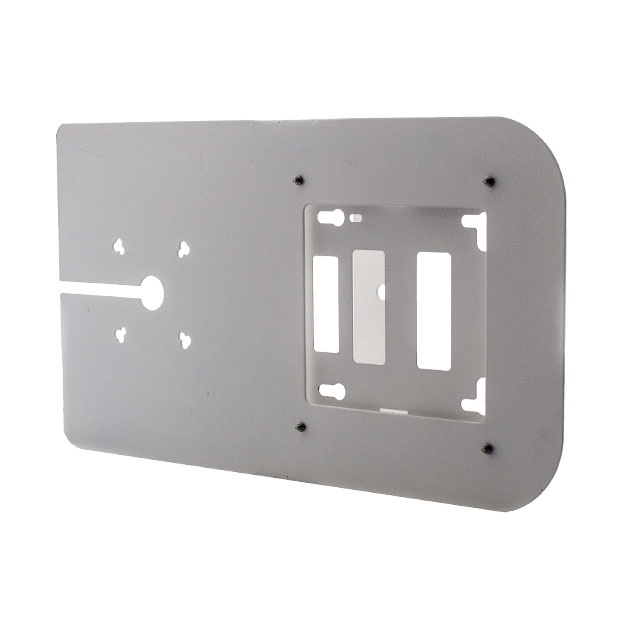

The AccelTex Solutions All-Thread Drop Mount provides a unique solution to mount a Cisco, Aruba or other T-Bar mounted AP and an AccelTex Omni or Patch antenna in one location using All-Thread. The AP snaps into place by fitting the AP mounting feet into pre-defined keyholes in the mount or using the T-Bar mount supplied with the AP. This mount can be used to lower the height of the antenna and AP in a building with high ceilings or can even be placed above a suspended ceiling. All-Thread and fasteners not included.


Part Number:
ATS-DRPMNT-UNIV1-OOOP
DIMENSIONS 16.1" L x 9.1" W x 4.2" H (410mm L x 230mm W x 106mm H)
WEIGHTS 3.15 lb (1.43 kg)
INSTALLATION 3/8" All Thread or Beam Clamp
INSTALLATION ENVIRONMENT Indoor
COMPATIBLE AP adtran-bluesocket-1925-adtran-bluesocket-1935-adtran-bluesocket-2035-adtran-bluesocket-3045-aerohive-ap141-aerohive-ap245x-aerohive-ap350-aerohive-ap1130-avaya-wao-9122-cisco-1602e-cisco
APPLICABLE INDUSTRIES Enterprise, Hospitality, Transportation, Warehouse
IDEAL APPLICATIONS Carpeted Space, Indoor Wi-Fi
APPLICABLE TECHNOLOGY 802.11n, 802.11ac
COLOR White
MATERIAL Steel
ACCELTEX ACCELTEX AP AND OMNI OR PATCH ANTENNA ALL-THREAD DROP MOUNT
