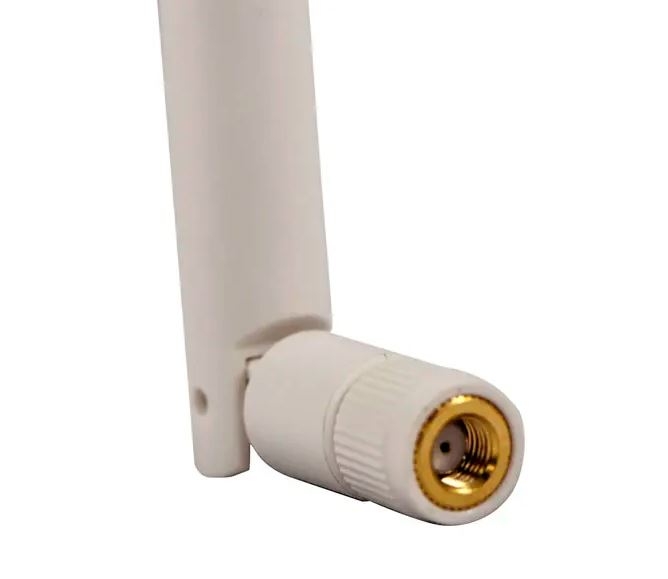

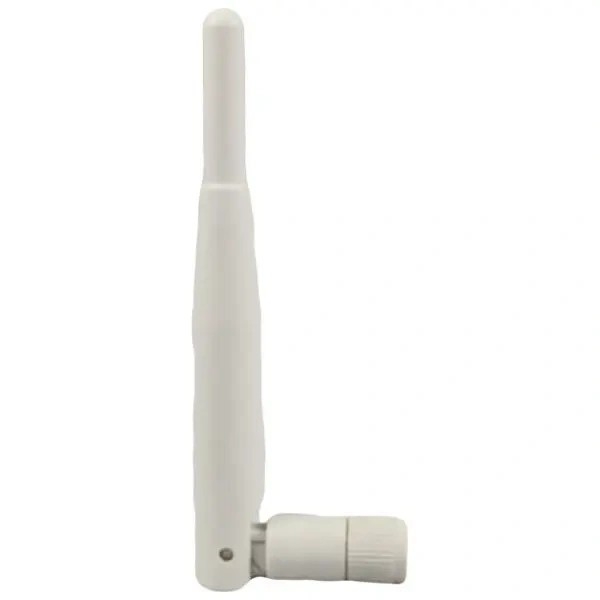

ACCELTEX HUBBELL ACCELTEX 2.4/5 GHZ 2/3DBI WHITE INDOOR ARTICULATING RUBBER DUCK ANTENNA ATS-ID90RD-245-23-1RPSP-IC-W
SKU
403212
Brand
MPN
ATS-ID90RD-245-23-1RPSP-IC-W
Warranty
Standard Manufacturer's Warranty
$43.00
Buy Now And Earn 43 Reward Points!
The AccelTex Solutions dual band indoor rubber duck antenna is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor space. The antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna also articulates 90 degrees and attaches directly to any enterprise-class AP. This highly versatile antenna is suitable for a broad range of indoor applications where a higher gain external antenna is not needed.
| ANTENNA TYPE |
Omni |
|---|---|
| FREQUENCY RANGE |
2.4-2.5/4.9-5.85 GHz |
| GAIN |
2/3 dBi |
| POLARIZATION |
Vertical |
| HORIZONTAL BEAMWIDTH |
360 |
| VSWR |
Max 2.0 |
| IMPEDANCE |
50 ohms |
| DIMENSIONS |
0.51" DIA x 5.14" L (13mm DIA x 130.5mm L) |
| INSTALLATION |
Direct Connect to Radio |
| CONNECTOR |
RPSMA Plug |
| NUMBER OF LEADS |
1 |
| INSTALLATION ENVIRONMENT |
Indoor |
| COMPATIBLE AP |
Arista C-230E, Aruba/HP AP-314, Aruba/HP AP-324, Aruba/HP AP-334, Aruba/HP AP-514, Aruba/HP AP-534, Extreme AP 245X, Extreme AP 410e, Extreme AP305CX, Extreme AP310E, Extreme AP510CX, Extreme AP510e, Extreme AP650X, Extreme WiNG AP 8533, Mist AP32E, Mist AP41E |
| APPLICABLE INDUSTRIES |
Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| IDEAL APPLICATIONS |
Indoor Wi-Fi, Outdoor Wi-Fi |
| APPLICABLE TECHNOLOGY |
802.11ac, 802.11ax, 802.11n |
