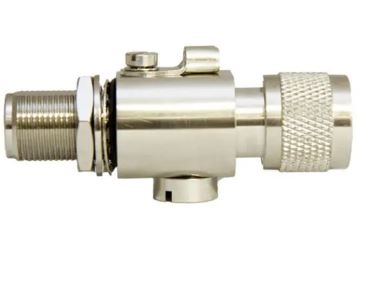

ACCELTEX N-STYLE BULKHEAD JACK TO PLUG LIGHTNING ARRESTOR EX DEMO OPENED ATS-LP-N-BHJ-P-DEMO
The AccelTex Solutions bi-directional gas discharge tube lightning arrestor protects outdoor equipment from the buildup and discharge of static electricity that affects the operation and lifespan of your network.
| DIELECTRIC WITHSTAND |
2500 V RMS |
|---|---|
| INSTALLATION |
DIN Rail Mount and L Bracket |
| OPERATING TEMPERATURE |
-40 to 185 F (-40 to 85 C) |
| COMPATIBLE AP |
Adtran/Bluesocket 1940, Adtran/Bluesocket 2135, Cisco 1532e, Cisco 1562e, Cisco 1562ps, Cisco 1572eac, Cisco 1572ec, Cisco Meraki MR62, Cisco Meraki MR66, Cisco Meraki MR72, Cisco Meraki MR74, Cisco Meraki MR84, Extreme AP 3865, Extreme AP 3965e, Extreme WiNG AP 7562, Extreme WiNG AP 8163 |
| APPLICABLE INDUSTRIES |
Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| IDEAL APPLICATIONS |
Indoor Wi-Fi, Outdoor Wi-Fi |
| APPLICABLE TECHNOLOGY |
802.11ac, 802.11ax, 802.11n |
| RELATED ACCESSORIES |
ATS-100-NJ-NP-18in |
| CONNECTOR 1 STYLE |
N-Style Bulkhead Jack |
| CONNECTOR 2 STYLE |
N-Style Plug |
| FREQUENCY RANGE |
DC – 5.85 GHz |
| IMPEDANCE |
50 ohms |
| STANDARD |
IEC 6019-16 |
| MATING |
5/8-24UNEF-2A and 5/8-24UNEF-2B |
| DURABILITY |
>= 500 Cycles |
| BODY |
Nickel Plated Brass |
| INSULATOR |
Teflon |
| CONTACT PIN |
Gold Plated Brass |
| DISCHARGE VOLTAGE |
90 V |
| CONTACT SOCKET |
Gold Plated Phosphor Bronze |
| INSULATION RESISTANCE |
>= 1000 megaohms |
