ACCELTEX 2.4/5 GHZ 13 DBI 6 ELEMENT INDOOR/OUTDOOR PATCH ANTENNA WITH RPSMA ATS-OP-245-13-6RPSP-36
SKU
371138
Brand
MPN
ATS-OP-245-13-6RPSP-36
Warranty
Standard Manufacturer's Warranty
$909.00
Buy Now And Earn 909 Reward Points!

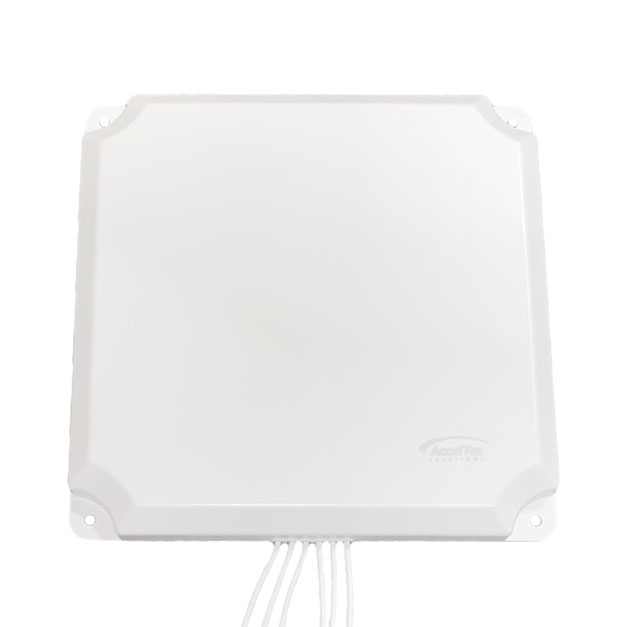

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Part Number:
ATS-OP-245-13-6RPSP-36
| ANTENNA TYPE | Patch |
| RADOME MATERIAL | ABS |
| APPLICABLE TECHNOLOGY | 802.11n, 802.11ac, 802.11ax |
| IDEAL APPLICATIONS | Carpeted Space, Indoor Wi-Fi, Outdoor Wi-Fi |
| APPLICABLE INDUSTRIES | Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse |
| COMPATIBLE AP | Mist AP 43E |
| WIND VELOCITY | 134 mph (216 km/h) |
| OPERATING TEMPERATURE | -40 to 158 F (-40 to 70 C) |
| INSTALLATION ENVIRONMENT | Indoor or Outdoor |
| CABLE TYPE | RG402 Plen |
| CABLE LENGTH | 36" (910mm) |
| NUMBER OF LEADS | 6 |
| CONNECTOR | RPSMA Plug |
| INSTALLATION | Wall Mount or Articulating Mount |
| FREQUENCY RANGE | 2.4-2.485/5.15-5.85 GHz |
| WEIGHTS | 2.5 lb (1.13 kg) |
| DIMENSIONS | 13-77x-13-77x-1-37350-x-350-x-50mm |
| MAX INPUT POWER | 50 W per port |
| LIGHTING PROTECTION | None |
| IMPEDANCE | 50 Ω |
| ISOLATION | > 30 dB |
| VSWR | ≤1.5:1, max 2.0 |
| VERTICAL BEAMWIDTH | 120 |
| HORIZONTAL BEAMWIDTH | 15 |
| POLARIZATION | Horizontal |
| GAIN | 13 dBi |
