SPECIFICATIONS

Video
Video Input	1 HDMI/MHL, 2 HDMI, 1 DP, 1 VGA
Video Input Signal	HDMI, DP, YPbPr, C-video, VGA
Video Output	1 HDMI , 1 HDBT
Video Output Signal	HDMI, HDBaseT
Resolution	1920×1200, 1920×1080, 1600×1200, 1600×900, 1360×768, 1280×800, 1280×720, 1024×768
Standards	Compliant with HDMI 1.4 & HDCP2.2
Audio
Audio Input	1 stereo audio input for DP (3.5mm Stereo jack) 1 stereo audio input for VGA (3.5mm Stereo jack) 1 Microphone audio (3 pin Phoenix connector)
Audio Output	1 Dual-Mono analog audio (5 pin Phoenix connector)
Audio Ouput Impedance	70Ω
Frequency Response	20Hz ~ 20KHz
Stereo Channel Separation	>80dB @1KHz
Control
Control Ports	1 IR IN 1 IR OUT 1 IR EYE 1 RS232 1 TCP/IP
Control Connector	3 3.5mm mini jack 1 3-Pin phoenix connector 1 RJ45
General
Transmission Distance	1080P ≤ 70m (Cat6)
Temperature	0 ~ +50℃
Humidity	10% ~ 90%
Power Supply	DC24V 2.71A
Power Consumption	27W
Dimension (W*H*D)	220mm x 44mm x 172.5mm
Weight	800g

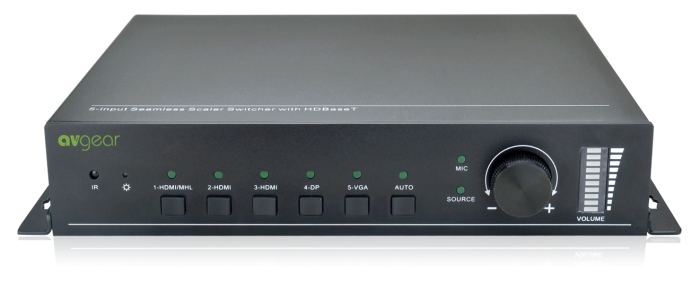

AVGear | AVG-SC51TS | HDBT / Seamless Scaler 5×2 HDBT with DP The AVG-SC51TS is a compact seamless scaler switcher with 5 video inputs and 3 audio inputs. The VGA input supports VGA, YPbPr, and C-Video, ensuring the scaler switcher is compliant with multiple video signal types. It is controllable via the front panel, IR, RS232, and a web-based GUI. The AVG- SC51TS scales & switches any video signal to the HDMI output and the HDBaseT output simultaneously. Features 5 Video Inputs: 1 HDMI/MHL, 2 HDMI, 1 Display Port & 1 VGA VGA input supports C-Video, YPbPr and VGA MIC input supports balanced / unbalanced signal 3 Level MIC input, supports a condenser microphone, dynamic microphone, and wireless microphone 48V Phantom power available Upscale to HDBaseT & HDMI simultaneously up to 1080P. Maximum HDBaseT transmission distance up to 70M over a single CAT5e / CAT6a cable Supports PoH Output resolution is selectable HDMI 1.4 and HDCP2.2 compliant Front panel lockout feature Controllable via front panel, IR, RS232, and web-based GUI Controllable via HDBT receiver AVG-HD300SR at the display end. CEC control Warranty 1-year limited warranty. Why 4Cabling? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
