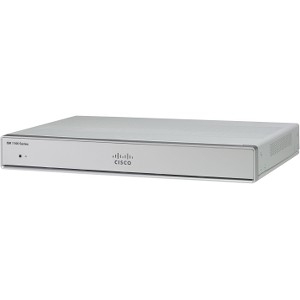

Cisco (c1117-4p) Isr 1100 4 Ports Dsl Annex A/ M And Ge Wan Router C1117-4p
SKU
262422
Brand
MPN
C1117-4P
Warranty
Standard Manufacturer's Warranty
$1,484.00
Buy Now And Earn 1484 Reward Points!
| Business need | Features/description |
| Lightweight, compact size with low power consumption | ● Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology). |
| High performance to run concurrent services | ● High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
| High availability and business continuity | ● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | ● The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security | ● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GETVPN. ● Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility. ● Cisco Umbrella™ is a cloud security platform that provides the first line of defense against threats on the internet wherever users go. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. |
| Unified control of wired and wireless networks from a common console for streamlined operations | ● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean | ● Supports separate console/auxiliary and USB ports. Can be configured to work with optional USB token. ● Supports TR-069. |
| Performance ● Throughput ● Service reliability | ● ISR 1100 can provide encrypted traffic performance greater than 350 Mbps. ● A distributed multicore architecture with the dedicated control plane and service plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances (Future roadmap). |
| Lower WAN expenditures | ● Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection. ● Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility. |
| Pay as you grow: IPsec performance upgrade model | ● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | ● Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | ● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints (Not available on C1101 smaller form factor series). |
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | C1117-4P |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Model: | C1117-4P |
| Product Name: | C1117-4P Router |
| Product Series: | 1100 |
| Product Type: | Router |
| I/O Expansions | |
|---|---|
| Number of Total Expansion Slots: | 1 |
| Interfaces/Ports | |
|---|---|
| Management Port: | Yes |
| Powerline: | No |
| Total Number of Ports: | 6 |
| Media & Performance | |
|---|---|
| Broadband Transmission Technology: | VDSL |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-TX |
| VoIP Supported: | No |
| Physical Characteristics | |
|---|---|
| Depth: | 243.8 mm |
| Form Factor: | Rack-mountable |
| Height: | 44.5 mm |
| Weight (Approximate): | 2.59 kg |
| Width: | 322.6 mm |
| Power Description | |
|---|---|
| PoE (RJ-45) Port: | Yes |
| Redundant Power Supply Supported: | No |
