Startech Conference Table Connectivity Box Hdmi / Vga / Mini Displayport To Hdmi Output With Fast Charge Usb Port For Mobile Devices & Eth Box4hdecp
No Longer Available

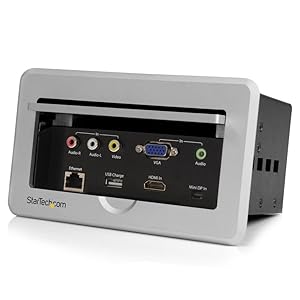

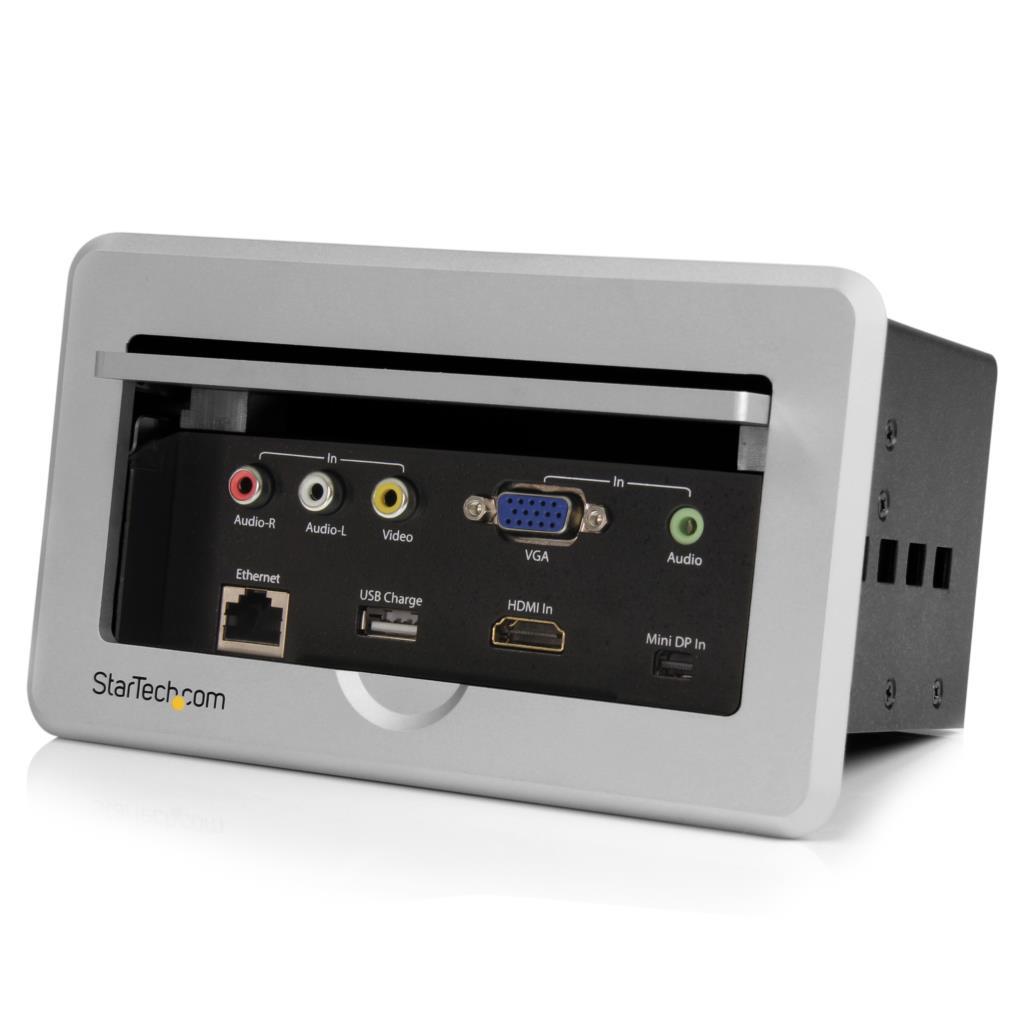

Uncovered Table Top View

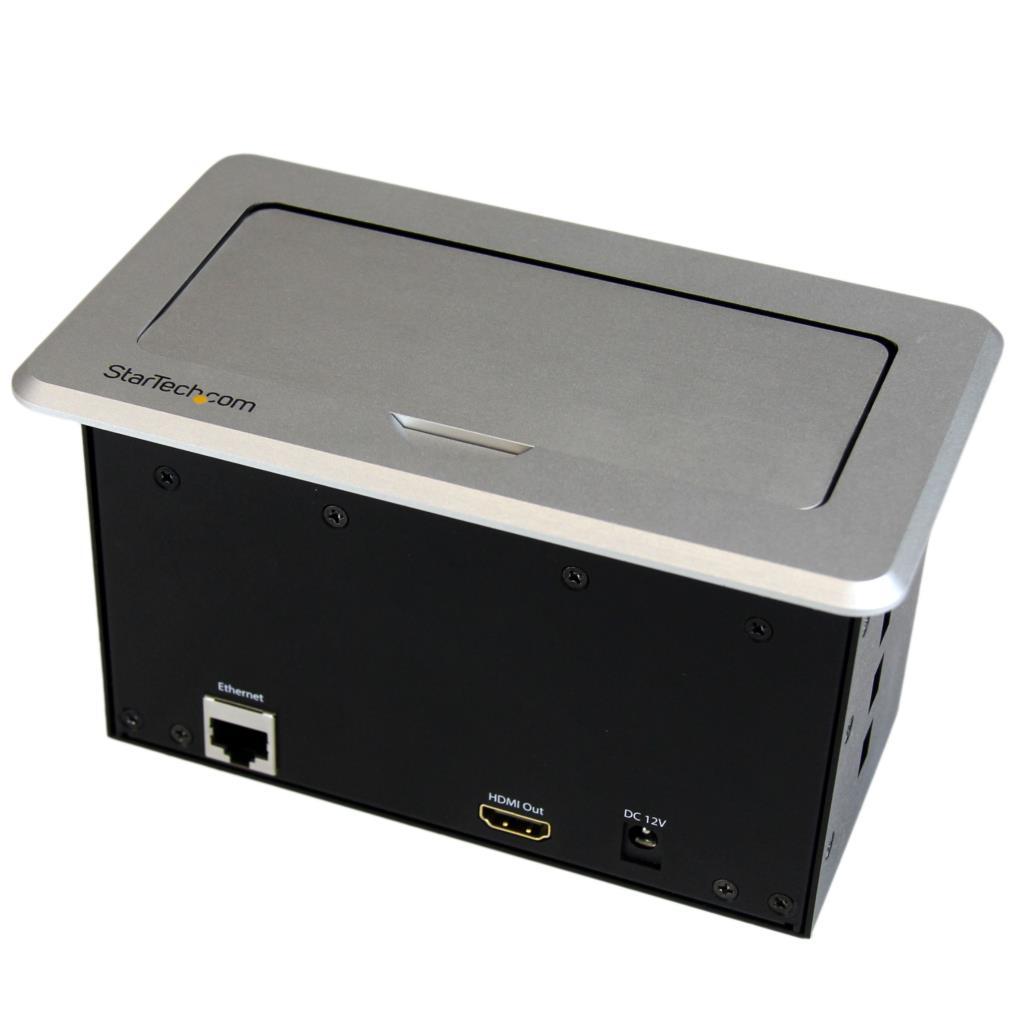

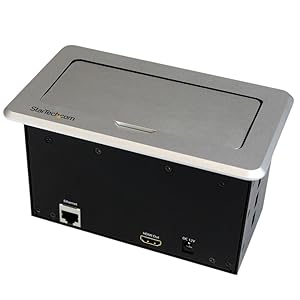

Covered Table Top View
Hidden Output Connections
Installation and Instructions
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Passive | |
| Audio | Yes |
| Converter Type | Presentation Adapters |
| Output Signal | HDMI |
| Ports | 4 |
| USB Pass-Through | No |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 kg [3.7 lb] |
| Performance | |
| Audio Specifications | 7.1 Surround sound (HDMI, Mini DisplayPort) 2-Channel Stereo (3.5mm, RCA) |
| Maximum Analog Resolutions | 1920x1080 |
| Maximum Cable Length | 15.2 m [50 ft] |
| Maximum Digital Resolutions | 1920x1080 |
| Supported Resolutions | 1920x1080 (1080p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 100 mm [3.9 in] |
| Product Length | 170 mm [6.7 in] |
| Product Weight | 1131 g [39.9 oz] |
| Product Width | 100 mm [3.9 in] |
| Power | |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2A |
| Output Voltage | 12 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | VGA (input) to HDMI (output) - HDMI port is active Composite (input) to HDMI (output) - HDMI port is active DisplayPort (input) to HDMI (output) - HDMI port is active HDMI (input) to HDMI (output) - HDMI port is passive |
| What's in the Box | |
| Included in Package | DieCut Outline |
| HDMI/VGA/mDP/Composite Table Surface Access Switch | |
| Instruction Manual | |
| Universal Power Adapter (NA/EU/UK/AU) | |
| Environmental | |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | 10% to 85% (Non-condensing) |
| Connector(s) | |
| Connector B | RJ-45 Female |
| HDMI (19 pin) Male Output | |
| Connector A | VGA (15 pin, High Density D-Sub) Female Input |
| USB Type-A (4 pin) USB 2.0 Female | |
| Stereo Audio (2 x RCA) Female Input | |
| RJ-45 Female | |
| Mini-DisplayPort (20 pin) Female Input | |
| HDMI (19 pin) Female Input | |
| Composite Video (1 x RCA) Female Input | |
| 3.5 mm Mini-Jack (3 Position) Female Input | |
This connectivity box for conference tables features a concealed, in-table design that lets you connect a VGA, Mini DisplayPort, HDMI or composite video source device to an HDMI display or projector. When the video switch isn't in use, you can simply slide the stylish cover panel over the connectors, hiding them inside the table or podium surface.
Convenient accessibility
Presenters can conveniently share content from their own device with the table top switch automatically converting any attached audio/video source device into a single HDMI output. The switch box also offers stylish integration into your modern boardroom or classroom with a discreet hideaway panel. For added convenience the BOX4HDECP features a USB charging port to charge your mobile device and an Ethernet pass-through port for Internet connectivity in boardrooms where Wi-Fi® is not available.
Collaborate easily

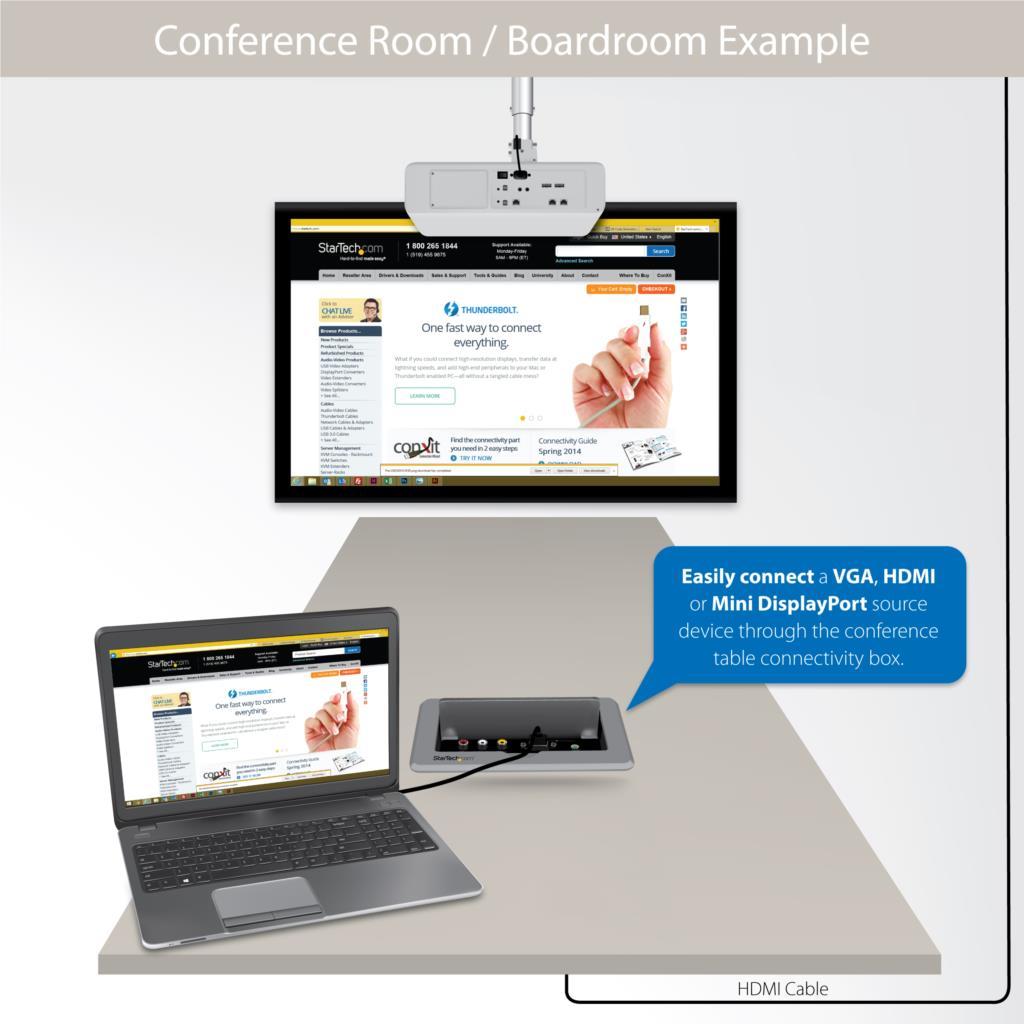

The A/V switch makes your large display accessible to any presenter's video source device, by installing directly into the surface of your table or podium, and automatically outputs the most recently connected video source. Plus, support for high-definition video resolutions up to 1920x1080 (1080p) ensures that the quality of your presentation is maintained.
Connectivity options
With support for different video inputs, including HDMI, VGA, Mini DisplayPort, and composite, the video switch ensures support for almost any laptop, Ultrabook™ or mobile device such as MacBook®, Microsoft® Surface™ Pro 2 & 3, and Lenovo X1™. The switch panel even works with legacy audio/video devices such as DVD players, and supports the use of video adapters for your iPhone® or iPad®.
The BOX4HDECP is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
