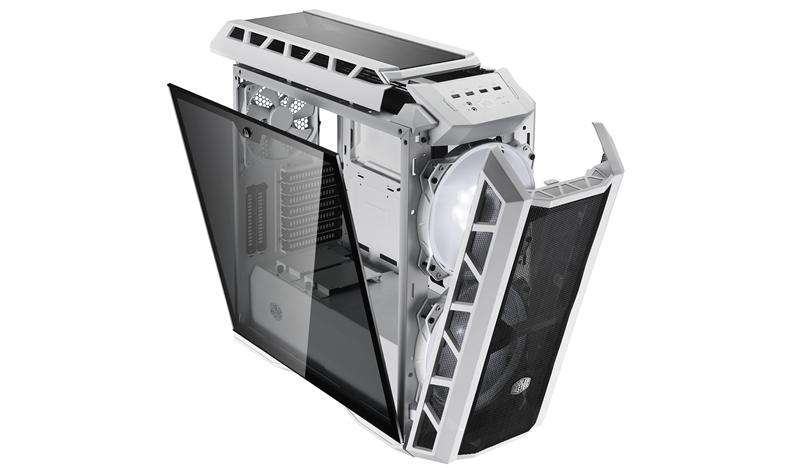

Cooler Master Mastercase H500p Mesh White, Tg, 2x 200 Rgb Fans, Rgb Controller & Splitter Cable Included
No Longer Available
QUICK OVERVIEW
BUILDER FOCUSED
The H500P's design allows for easy disassembly.
All of the panels can be easily taken off, ideal for CaseModders looking to paint their PC.
TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL
Optimized airflow is guaranteed with a complete mesh front panel, providing plenty of air intake for the two pre-installed 200mm RGB fans. Use RGB lighting to create a captivating build in your preferred color theme.
COVERS FOR CLEAN BUILDING
A PSU shroud, the CPU cut out cover and additional cable covers take clean cable management to the next level. Assemble clean builds like a pro!
-
Cable Management Cover -
CPU Cut Out Cover -
PSU Shroud -
Clean Cable Routing
SHOW OFF YOUR GRAPHICS CARD
Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position.
* Additional Riser Cable needed to use your graphic card vertically.
CLEAR VIEW INSIDE
The MasterCase H500P Mesh White has a light grey tinted tempered glass side panel and plastic top cover, making it ideal for showcasing your build with (RGB) lighting.
LIQUID COOLING READY
The MasterCase H500P Mesh White accommodates up to a 360mm radiator on the top and front.
AIRFLOW OPTIMIZATION
The MasterCase H500P Mesh White is optimized for better airflow through its front mesh.
| Product Name | MasterCase H500P Mesh White | |
| Model Number | MCM-H500P-WGNN-S00 | |
| Available Color | White | |
| Materials | Outlook: Plastic, Steel Mesh Body: Steel Side panel: Tempered Glass, Steel | |
| Dimensions (LxWxH) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x 10.7") | |
| Expansion Slots | 7 + 2 (Support vertical graphics card installation) | |
| Drive Bays | 5.25" | 0 |
| 2.5" / 3.5" | 2 | |
| 2.5" SSD | 2 (Drive Bay support up to 5) | |
| I/O Port | USB 3.0 x 2 USB 2.0 x 2 Audio In & Out (supports HD Audio) | |
| Pre-installed Fan(s) | Front | 200 x 25mm RGB fan x 2, 800RPM |
| Rear | 140 x 25mm fan x 1, 1200RPM | |
| Fan Support | Top | 120/140mm fan x 3 or 200mm fan x 2 |
| Front | 120/140mm fan x 3 or 200mm fan x 2 | |
| Rear | 120/140mm fan x 1 | |
| Liquid Cooling Support | Top | 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 55mm) |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm | |
| Rear | 120mm, 140mm | |
| Clearance | CPU Cooler | 190mm / 7.5 inch |
| GPU | 412mm / 16.2 inch | |
| Power Supply Support | Bottom mount, ATX PS2 | |
| EAN Code | 4719512068526 | |
| UPC Code | 884102041037 | |
