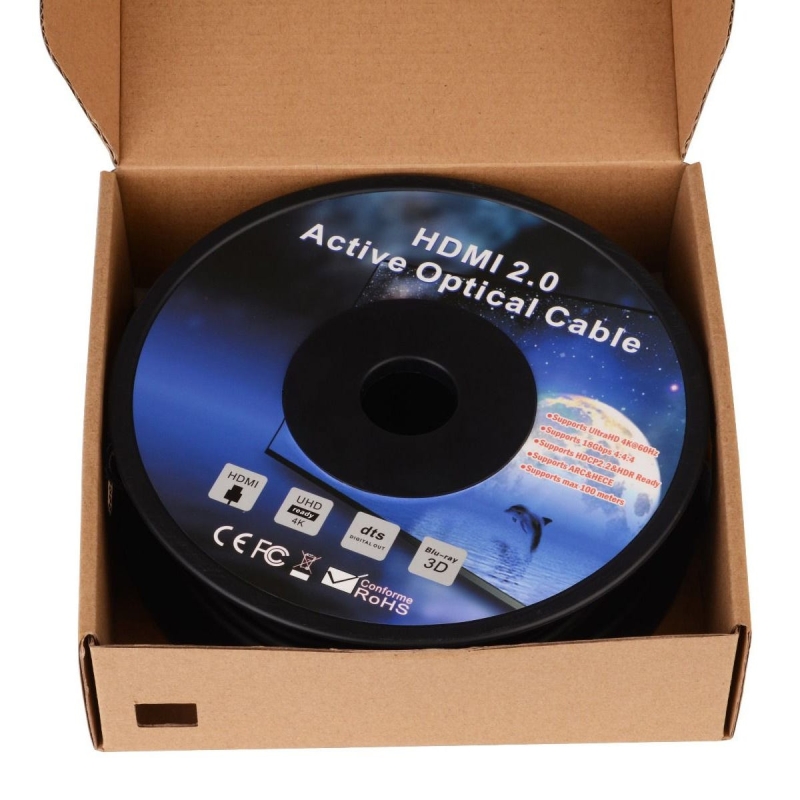

4Cabling Detachable 30M Hdmi 2.0 Active Optical Cable |Aoc Cable (022.009.4530)
DETAILS
DETACHABLE 30M PREMIUM HIGH SPEED HDMI® CABLE WITH ETHERNET | ACTIVE OPTICAL CABLE |AOC CABLE SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI® 2.0

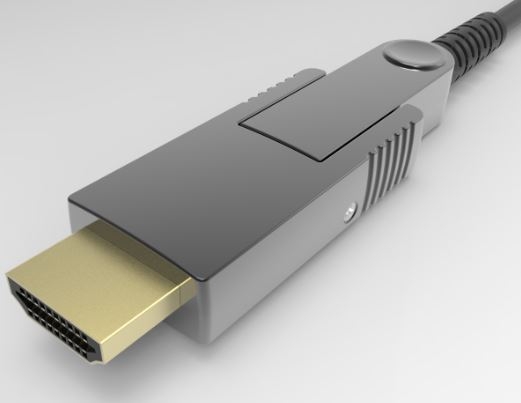

Our new HDMI® active Fiber Optic UHD Pluggable Cable is suited for critical and versatile installations. It supports a data rate of up to 18Gbps. It is extremely lightweight, flexible and ultra-small (4.5mm). The standard HDMI A connector can be removed to reveal a much smaller Micro HDMI D connector. This enables smooth pulling of the cable. This HDMI Hybrid Cable provides full HDMI signal integrity and is plug and play with no external power required. The source ends of the cable convert the incoming electrical signal into optical and the display end converts it back.
This cable is ideal for long-distance transmission in professional AV systems, indoor and outdoor digital signage and kiosks, home theatre systems, surgical theatres, facility automation systems and whenever high-resolution video and audio are required.
The
SOURCE end need to be connected to where the signal comes
from (for example, a DVD, Blu-ray or game console box) and
the DISPLAY end needs to connect to the receiver (for
example, a
projector or LCD display).
FEATURES
- Supports a wide range of resolutions up to 4K@60Hz as specified in HDMI 2.0 (colour space 4:4:4) 3D and Deep colour
- Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio
- EDID, CEC, HDCP 2.2 and HDR (High Dynamic Range)
- Reduced EMI and RFI
- Has high pulling strength and compression load
- Has Source / Display clearly printed on the connector for easy identification.
- Support 18G super speed
- Supports a Micro USB DC cable to optionally connect an external 5V power supply (if required, this is typically connected on the display side).
- Advance optical engine embedded
- Small, light and flexible cable with plastic pulling covers to make the installation in tight places easier.
|
Units |
Transmitter (Source) |
Receiver (Display) |
|
HDCP & DDC |
HDCP2.2 Fully Support bi-directional EDID and HDCP communication |
|
|
Video Bandwidth |
6 Gbps /x3Channel (max)+ Clock. |
|
|
Supported Resolution & Distance |
HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters |
|
|
O/E Converter |
4 channel 850 nm VCSEL array |
4 CH GaAs PD array |
|
Connector Type |
HDMI type D with HDMI D/Female to HDMI A/Male Adaptor |
|
|
Connector Demension |
Type D: 44.2mm x 12.7mm x 7.1mm W, D, H Type A : 48.2mm x 20mm x 10mm W, D, H Pulling Tool: 55.2mm x 17.5mm x 13mm W, D, H |
|
|
Cable Type |
Hybrid type with OM3 fiber and copper wire |
|
|
Cable Length |
15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available. |
|
|
Cable Outer Diameter |
4.5mm |
|
|
Jacket Outer Material |
PVC/TPU(Custom) |
|
|
Cable Weight TBD |
Cable Weight TBD |
|
|
Cable Color TBD |
Cable Color TBD |
|
|
Differential Input |
100 ohm (typ) |
|
|
Power Consumption |
250mW (max) |
|
