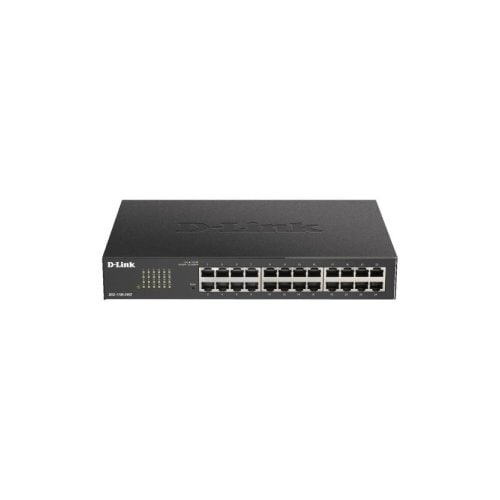

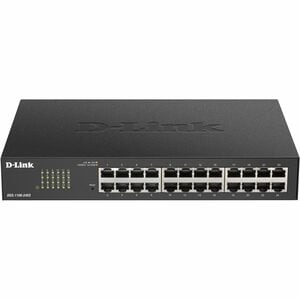

D-Link DGS-1100 DGS-1100-24V2 24 Ports Manageable Ethernet Switch - 2 Layer Supported - Twisted Pair - 1U High - Rack-mountable, Desktop DGS-1100-24V2

SKU
418627
Brand
MPN
DGS-1100-24V2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $263.00 Regular Price $303.00
Buy Now And Earn 263 Reward Points!
D-Link DGS-1100 DGS-1100-24V2 24 Ports Manageable Ethernet Switch - 2 Layer Supported - Twisted Pair - 1U High - Rack-mountable, Desktop
The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.

D-Link Green/Power Saving Performance

Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the DGS-1100 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on additional cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.

Easy to Deploy

The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant) and a web-based management interface. The client-based D-Link Network Assistant (DNA) discovers all D-Link Smart Managed Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switches to be controlled from any PC that is connected to the network.

Surveillance VLAN and Bandwidth Control

The DGS-1100 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.

Advanced Features

The DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the load of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.


Features
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Management capability provides control over setup and configuration of your network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Features 24 networking ports to meet the requirements of the most demanding workgroups
With the exception of information relating to Ingram Micro pricing and stock availability, all product information has been provided by the relevant original equipment manufacturer and/or vendor and not Ingram Micro, and Ingram Micro has included it on this Website as a convenience only. The Customer should confirm all product descriptions and specifications with the relevant original equipment manufacturer or vendor before purchase.
Management & Protocols
Manageable Yes
Miscellaneous
TAA Compliant No
Network & Communication
Layer Supported 2
Power Description
Power Source Power Supply
Interfaces/Ports
Total Number of Network Ports 24
Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Media & Performance
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
Media Type Supported Twisted Pair
Physical Characteristics
Weight (Approximate) 1.32 kg
Form Factor Desktop
  Rack-mountable
Height 44 mm
Width 280 mm
Depth 180 mm
Compatible Rack Unit 1U
General Information
Product Type Ethernet Switch
Manufacturer Part Number DGS-1100-24V2
Manufacturer Website Address http://www.dlink.com.au
Manufacturer D-Link Systems, Inc
Product Model DGS-1100-24V2
Product Name DGS-1100-24V2 Ethernet Switch
Product Series DGS-1100
Brand Name D-Link
