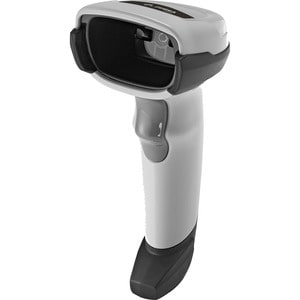

Zebra DS2208-SR WHITE (WITH STAND) USB KIT: DS2208-SR00006ZZWW SCANNER. CBA-U21-S07ZBR SHIELDED USB CABLE. 20-71043-04R STAND DS2208-SR6U2100SGW

SKU
387456
Brand
MPN
DS2208-SR6U2100SGW
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$137.00
Buy Now And Earn 137 Reward Points!

DS2208-SR WHITE (WITH STAND) USB KIT: DS2208-SR00006ZZWW SCANNER. CBA-U21-S07ZBR SHIELDED USB CABLE. 20-71043-04R STAND

Affordability and simplicity delivered
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can't capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. Your workers get best-in-class first-time, everytime scanning with point-and-shoot simplicity. You get an imager that couldn't be easier to deploy and manage. And you can choose the model that best fits your POS needs - the corded DS2208 or the cordless DS2278. The DS2200 Series - the affordability your budget demands, with the deployment, ease-of-use and management simplicity your business requires.

Easy to Deploy

Pre-Configured and Ready to Use, Right Out of the Box

Since the default settings are optimized for the majority of scanning applications, you can use the DS2200 Series imager the moment you take it out of the box - no configuration required..

Auto-Host Detect Cables

Just plug the DS2200 Series into your Point of Sale (POS) and the auto-host detect cables will automatically identify the interface and connect the imager, simplifying and reducing setup time.

Easy Integration with a Tablet-Based POS

The DS2200 Series offers all the features you need to add high-quality scanning to your tablet-based POS. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200 Series right from the tablet.

Deploy Anywhere in the World

With over 90 international keyboards, the DS2200 Series is easy to deploy all around the world.

Easily Customize Settings with 123Scan

This complementary software tool is so intuitive that even a first time user can easily set up a DS2200 Series imager. The wizard-driven interface makes it easy to embed all settings into a single programming barcode, enabling you to configure your devices with a single scan.

Backwards Compatible with Zebra LS2208 Series Cables

If you use Zebra's 1D LS2208 scanners today, you can use the same universal cables with the DS2200 Series, allowing you to leverage your existing accessory investment to minimize the cost of upgrading to a 1D/2D imager.


Guides & Documents
  •
    Brochure
    •
    •
    •
    •
Interfaces/Ports
Host Interface USB
Technical Information
Barcode Symbology Supported 1D:
      • Code 39
      • Code 128
      • Code 93
      • Codabar/NW7
      • Code 11
      • MSI Plessey
      • UPC/EAN
      • I 2 of 5
      • Korean 3 of 5
      • GS1 DataBar
      • Base 32 (Italian Pharma)
2D:
    • PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Chinese Sensible (Han Xin)
    • Postal Codes
Connectivity Technology Cable
Scanning Distance 368.30 mm
Scanner Range Standard Range
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Scan Pattern Omni-directional
Scan Rate 30 scan/s
Image Sensor Type Imager
Stand Included Yes
Cable Type Included USB
Scanning Capability 2D
1D
Field of View (Horizontal) 33°
Field of View (Vertical) 25°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 127 mm/s
Maximum Ambient Light 107600 lux
Minimum Print Contrast 25%
Maximum Element Resolution (Code 39) 0.13 mm
Maximum Element Resolution (DataMatrix) 0.25 mm
Maximum Element Resolution (PDF417) 0.17 mm
Physical Characteristics
Weight (Approximate) 161.6 g
Form Factor Handheld
Height 165.1 mm
Width 66 mm
Depth 99.1 mm
Product Color Nova White
General Information
Product Type Barcode Scanner Kit
Manufacturer Part Number DS2208-SR6U2100SGW
Manufacturer Website Address http://www.zebra.com/ap/en.html
Packaged Quantity 1
Manufacturer Zebra Technologies Corporation
Product Model DS2208-SR
Product Name DS2208-SR Handheld Barcode Scanner with Stand
Product Series DS2200
Brand Name Zebra
Miscellaneous
Application/Usage Light/Clean Manufacturing
Industrial
Retail
Logistics
Transportation
Hospitality
Government
Environmentally Friendly Yes
Ingress Protection (IP) Rating IP42
