Startech Dual Msata Ssd To 2.5sata Raid Adapter Converter - 2x Msata Ssd To 2.5in Sata Adapter
QUICK OVERVIEW
| Connector(s) | |
| Drive Connectors | mSATA (52 pin, Mini SATA) Receptacle |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Environmental | |
| Operating Temperature | -40?C to 85?C (-40?F to 185?F) |
| Hardware | |
| Chipset ID | JMicron - JMS562 |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Installation | Fixed |
| Drive Size | mSATA (Full Size & Half Size) |
| Interface | SATA |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | Drive #1 Activity |
| Drive #1 Failure | |
| Drive #2 Activity | |
| Drive #2 Failure | |
| Packaging Information | |
| Shipping (Package) Weight | 108 g [3.8 oz] |
| Performance | |
| Hot Swap Capability | No |
| Maximum Data Transfer Rate | 6 Gbps |
| MTBF | 5,101,299 Hours |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Enclosure Type | Steel, Aluminum and Plastic |
| Product Height | 7 mm [0.3 in] |
| Product Length | 97 mm [3.8 in] |
| Product Weight | 39 g [1.4 oz] |
| Product Width | 70 mm [2.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Dual mSATA to 2.5in SATA Adapter |
| Install Guide | |
| Mounting screw kit | |

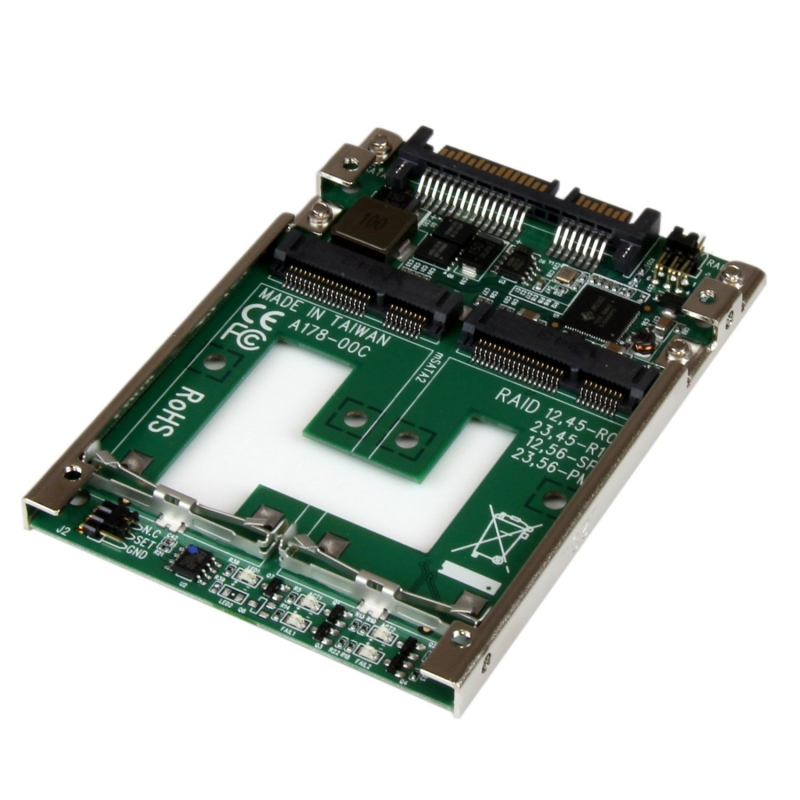

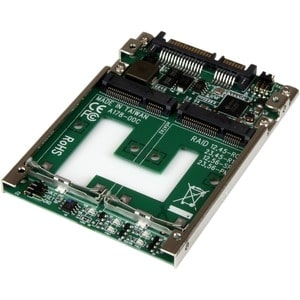

Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.
