Tenda E30 PCI-E Adapter: AX3000 Wi-Fi 6 Dual band 2.4/5GHz up to 2402Mbps, support BT 5.0, 2x 5dBi antennas
E30 / Adapter / AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

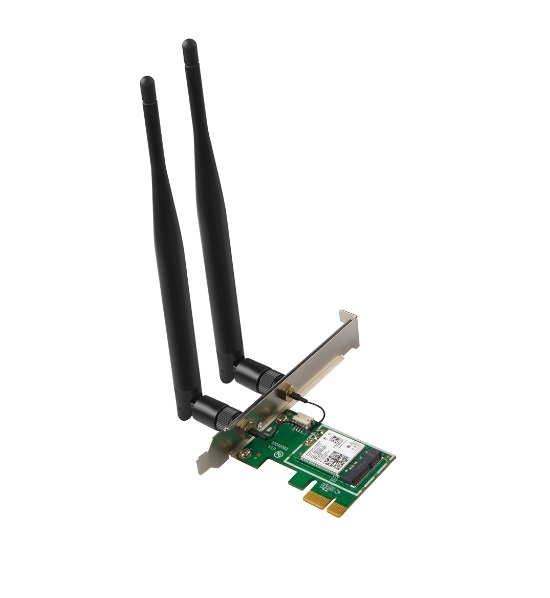

E30 is a PCIe adapter with Wi-Fi 6. It supports 1024QAM and 160MHz bandwidth (2.4G wireless rate up to 574Mbps, 5GHz wireless rate up to 2402Mbps), to meet the smooth experience of online games and 4K videos on PC. E30 has two detachable 5dBi dual-band antennas, which provides stable Wi-Fi over a long distance.
Specifications:
|
Interface |
PCI-E Express x1 |
|
Antenna |
2 * Detachable 5dBi Antenna |
|
LED indicator |
1* System LED |
|
Dimension |
120.8mm * 78.5mm * 21mm(L*W*H) |
|
Wireless Standards |
IEEE802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax Bluetooth 5.0/4.2/4.0 |
|
Frequency |
5GHz 2.4GHz |
|
Signal Rate |
5GHz: Up to 2402Mbps |
|
Transmit Power |
<20dBm (EIRP) |
|
Wireless Mode |
Station Mode |
|
Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK / WPA3-SAE, 802.1x, WPA/WAP2/WPA3 |
|
Certification |
CE, FCC, RoHS |
|
System Requirement |
Windows10 |
|
Package Content |
1 * Wireless AX3000 PCI Express Adapter 1 * Resource CD 1 * Install Guide 1 * Bluetooth Header Cable 2 * Detachable 5dBi Antenna |
|
Environment |
Operating Temperature: 0~40 C(32~104 F) Storage Temperature: -40~70 C(-40~158F) |
