DESCRIPTION

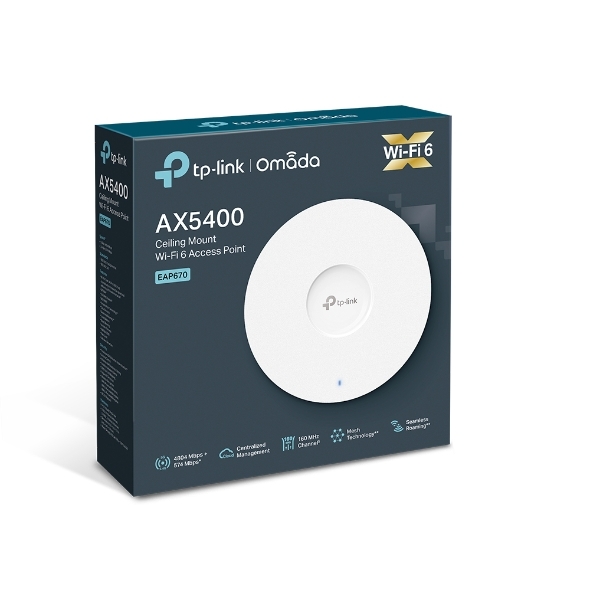

TP-Link EAP670 AX5400 Ceiling Mount WiFi 6 Access Point

• Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

HARDWARE FEATURES
Interface 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V / 1.5 A DC
Power Consumption • EU: 18.1 W
• US: 19.8 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)

Package Contents • EAP670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
