Product Description

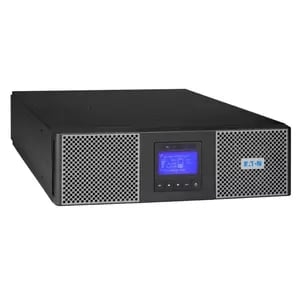

Power Module for the Eaton 9PX 11000i. The Eaton 9PX UPS provides energy efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Product Description Eaton 9PX11KIPM - UPS - 10000 Watt - 11000 VA
Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size 19" - 3U
Weight 21 kg
Input Voltage AC 200/208/220/230/240/250 V
Output Voltage AC 200/208/220/230/240/250 V ? 1% ( 50/60 Hz )
Power Capacity 10000 Watt / 11000 VA
Output Connector(s) 4 x power IEC 320 EN 60320 C19 ¦ Hardwire
Battery Expandable
Battery Form Factor Plug-in module
Networking RS-232, USB
System Requirements Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Dimensions (WxDxH) 44 cm x 70 cm x 13 cm
Environmental Standards ENERGY STAR
Manufacturer Warranty 2 years warranty

Extended Specification

GENERAL
Battery Enclosure Type Plug-in module
Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units) 3U
Rack Size 19"
BATTERY
Type Expandable
DIMENSIONS & WEIGHT
Depth 70 cm
Height 13 cm
Weight 21 kg
Width 44 cm
ENVIRONMENTAL PARAMETERS
Max Operating Temperature 40 ?C
Min Operating Temperature 0 ?C
Sound Emission 50 dBA
ENVIRONMENTAL STANDARDS
ENERGY STAR Yes
EXPANSION / CONNECTIVITY
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Interfaces 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 PIN USB Type B ¦ EPO (emergency power off)
MANUFACTURER WARRANTY
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
MISCELLANEOUS
Compliant Standards FCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Features Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, automatic self-test
NETWORKING
Remote Management Interface RS-232, USB
POWER DEVICE
Frequency Required 40 - 70 Hz
Input Connector(s) Hardwire
Input Voltage AC 200/208/220/230/240/250 V
Input Voltage Range AC 176 - 276 V
Output Voltage AC 200/208/220/230/240/250 V ? 1% ( 50/60 Hz )
Power Capacity 10000 Watt / 11000 VA
Power Output Connectors Details 4 x power IEC 320 EN 60320 C19 ¦ Hardwire
Supported Power Modules Qty 12
Surge Suppression Yes
UPS Technology On-line
SOFTWARE / SYSTEM REQUIREMENTS
OS Required Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Software Included Intelligent Power Software Suite
