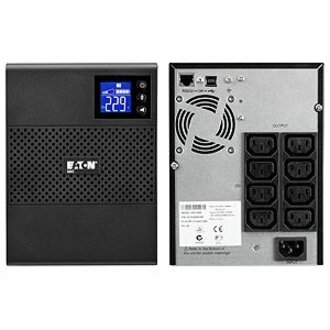

Eaton 5SC 1500 VA Tower
General
Topology Line-interactive high frequency with booster + fader, pure sinewave output
Configuration Tower
Part Number 5SC1500i
Color Black
Rating (VA/Watts) 1500/1050
Dimensions (H x W x D, mm) 210 x 150 x 410
Weight (kg) 15.2
Warranty 2 years

Electrical Input
Connection
(1) IEC-320-C14
C14
Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45?55Hz (50Hz system), 55?65Hz (60Hz system)

Electrical Output
Voltages 230V (+6/?10 %) (Adjustable to 220V/230V/240V)
Output Receptacles
(8) IEC-320-C13
C13
Output Frequency 50/60Hz +/?0.1 % (autosensing)
Battery Management ABM®, Automatic battery test, deep discharge protection

Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)

Environmental & Standards
Audible Noise <40 dB
Operating Temperature 0?35?C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)
