Benefits
20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
Extends LCD up to 33" (84 cm); push your display out of the way when not in use
Increase viewing comfort?help reduce eye, back and neck strain
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Patented CF motion technology provides premium ease-of-use adjustment
Cable management feature routes cables under the arm, out of the way
Ideal for space-constrained spaces?folds to within 4.5" (12 cm) of wall in storage position
Secure installation?locking connections between arm, extension and base
Passes Ergotron?s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Tech Specs

Screen
? 42"

Capacity
7?25 lbs*
3.2?11.3 kg

Lift
20"
51 cm

Tilt
75?†

Pan
360?**

Rotation
360?

VESA
MIS-D/E/F‡
Part Number: 45-353-026

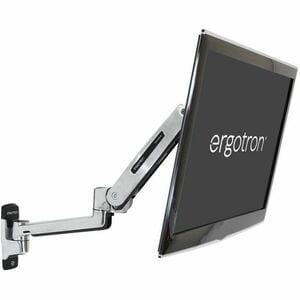

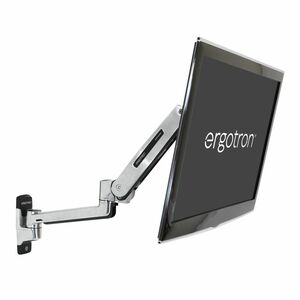

Description: LX Sit-Stand Wall Mount LCD Arm (polished aluminum)
Includes LX sit-stand arm, extension, wall-mount base, VESA brackets
Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
* Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity. Read more
† Monitor tilts 70? up and 5? down
** Rotation Stop on wall-mount base limits turn of extension-base connection to 180?, preventing extension from contacting wall
Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket (97-091, order separately)
Base includes theft-deterrent anchor holes for cable locks
NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight: 11 lbs (5 kg)
Shipping Dimensions: 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
Shipping Weight: 12.6 lbs (5.7 kg)
Warranty: Five (5) years
