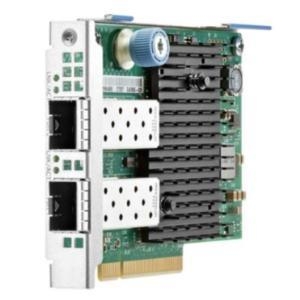

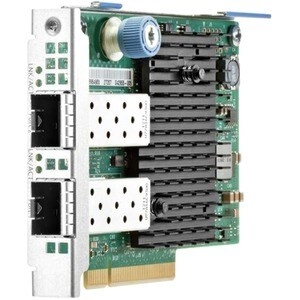

Hpe Ethernet 10gb 2-port 562flr-sfp+adpt 727054-b21
The HPE Ethernet 10Gb 2-port 562FLR-SFP+ adapter, featuring the next generation of 10Gb Ethernet integration offering a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use with HPE ProLiant Gen8 Rack and Scale-Out servers.
The HPE 562FLR dual-port design is ideal for high performance computing, server virtualization, security, server consolidation, and other applications requiring highest throughput. The total aggregate throughput of 20Gb meets the needs for customers desiring highest bandwidth.
The HPE 562FLR supports SR-IOV and enterprise class features such as Receive Side Scaling (RSS), Jumbo frames, PXE boot, Checksum and segmentation offload, and time stamping (IEEE 1588) along with virtualization features such as VMware NetQueue, Microsoft VMQ and Intel Virtualization Technology for Connectivity (VT-c).
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Interfaces/Ports | |
|---|---|
| Host Interface: | PCI Express 3.0 x8 |
| Total Number of Ports: | 2 |
| Media & Performance | |
|---|---|
| Media Type Supported: | Optical Fiber |
| Miscellaneous | |
|---|---|
| Device Supported: | Server |
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Network Technology: | 10GBase-X |
| Physical Characteristics | |
|---|---|
| Form Factor: | FlexibleLOM |
| Marketing Text | The HPE Ethernet 10Gb 2-port 562FLR-SFP+ adapter offers the latest SDN features in a FlexibleLOM form factor. The HPE 562FLR-SFP+ is a feature rich, low power dual port PCIe v3.0 x8 lane adapter designed for use in HPE ProLiant Gen9 Rack and Density Optimized servers. |
| PI Date | Sep 2016 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com/ |
| Product Type | Gigabit Server Adapter |
| Form Factor | FlexibleLOM |
| Ports | 2 x Gigabit Ethernet |
| No. of Ports | 2 |
| Bus Type | PCI Express 3.0 |
| Connectivity | 10/100/1000 |
| Data Rate Supported | 10 GbE |
| Processor Manufacturer | Intel |
| Processor Model | X710 |
| Depth (mm) | 241.3 |
| Height (mm) | 190.5 |
| Width (mm) | 57.1 |
| Weight (Kg) | 0.5 |
| Power Consumption | 5.6Watt |
| Compatibility | * HP ProLiant DL120 Gen9 E5-2603v3 4GB-R B140i 4LFF 550W PS Entry Server * HP ProLiant DL120 Gen9 E5-2609v3 8GB-R B140i 8SFF 500W PS Server/Promo * HP ProLiant DL160 Gen9 E5-2603v3 1P 8GB-R B140i 4LFF 550W PS Entry Server |
| Other Features | * Bus type:PCI Express 3.0 (8 GT/s) * Network processor: Intel Fortville X710 * HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter |
