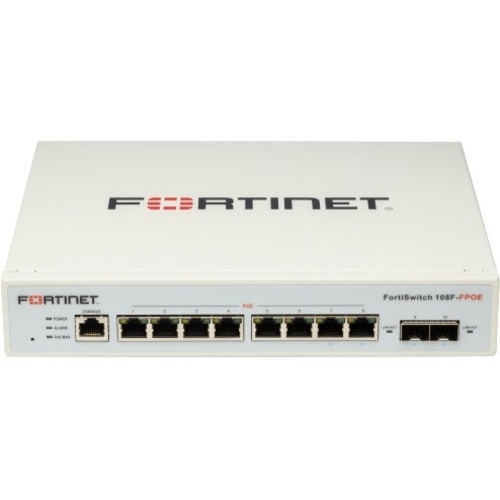

FORTINET HARDWARE FS-108F-FPOE
SKU
394772
Brand
MPN
FS-108F-FPOE
Warranty
Standard Manufacturer's Warranty
$1,232.00
Buy Now And Earn 1232 Reward Points!
FORTINET HARDWARE
Security, Performance, and ManageabilityThe FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
HIGHLIGHTS | Entry | 100 Series
- Entry level switch
- 8-48 GE ports, PoE+ capable
- Desktop to wiring closet
- 2-4 GE SFP uplink ports
- 4x 10GE SFP+ uplink ports
Mid-Range | 200 Series
- Mid-level switch
- 24-48 GE ports, PoE+ capable
- Typical wiring closet switch
- 4 GE SFP uplink ports
Premium | 400 Series
- Enterprise switch
- 24-48 GE and Multi-Gig port options, PoE+ and UPOE options
- Larger wiring closet or high throughput requirements
- 4x 10 GE SFP+ uplink ports
Aggregation | 500 Series
- Aggregation switch
- 24-48 GE ports, PoE+ capable
- Larger wiring closet or high throughput requirements
- 4x 10 GE SFP+ and 2x 40 GE QSFP uplink ports
- FortiGate managed
- Security Fabric enabled
- Most common deployment model
Standalone
- Industry standard deployment model
- Common in non-FortiGate environments
Management & Protocols
Manageable | Yes |
Miscellaneous
Environmentally Friendly | Yes |
I/O Expansions
Expansion Slot Type | SFP (mini-GBIC) |
Number of Total Expansion Slots | 2 |
Number of SFP Slots | 2 |
Media & Performance
Network Technology | 1000Base-X |
10/100/1000Base-T | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber |
Network & Communication
Layer Supported | 2 |
Networking Standards | IEEE 802.3u |
IEEE 802.1ab | |
IEEE 802.1ad | |
IEEE 802.1AX | |
IEEE 802.1D | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1Qbb | |
IEEE 802.1s | |
IEEE 802.1w | |
IEEE 802.1x | |
IEEE 802.3 | |
IEEE 802.3ab | |
IEEE 802.3ad | |
IEEE 802.3af | |
IEEE 802.3at | |
IEEE 802.3az | |
IEEE 802.3x | |
IEEE 802.3z |
Interfaces/Ports
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Total Number of Network Ports | 8 |
Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
2 x Gigabit Ethernet Expansion Slot |
Physical Characteristics
Weight (Approximate) | 1.84 kg |
Form Factor | Desktop |
Rack-mountable | |
Height | 43.9 mm |
Width | 250.2 mm |
Depth | 209 mm |
Compatible Rack Unit | 1U |
Power Description
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 139.20 W |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | No |
PoE Budget | 130 W |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | FS-108F-FPOE |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | 108F-FPOE |
Product Name | FortiSwitch 108F-FPOE Ethernet Switch |
Product Line | FortiSwitch |
Brand Name | Fortinet |
